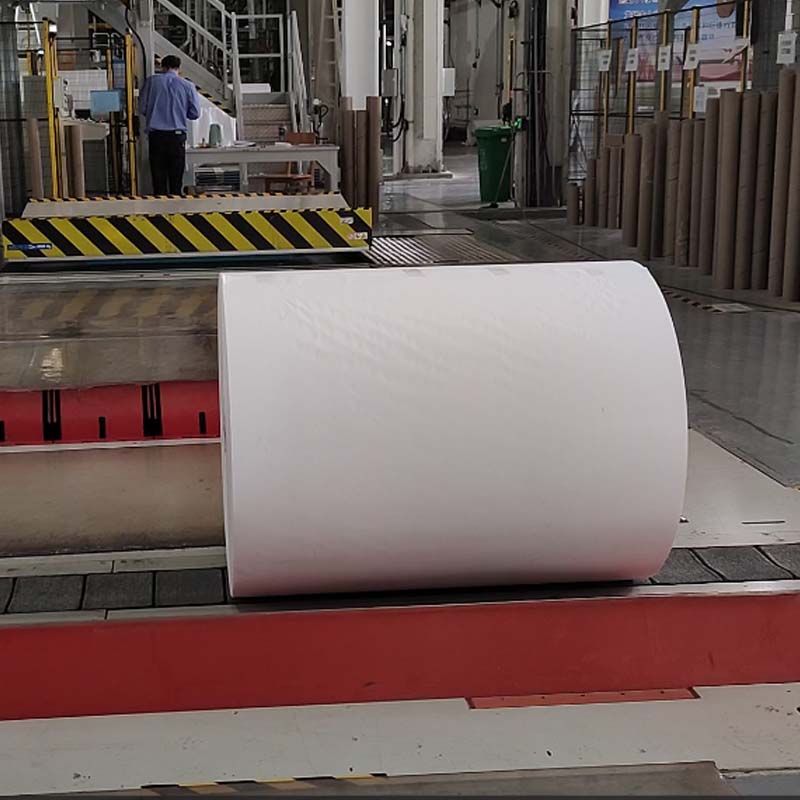

Paper Machine-Conveyor System for Paper Mill
Steel structure burden machine frame, cell design applying.
Vertical shaft mounted gear motor applied for driving.
Required controlled components and mounting bracket equipped.
Slat conveyor pit mounted to min space occupation and no effect to other operation in workplace.
Repair and maintenance pit and cover at head and tail driving parts and convenient for assembling and disassembling...
| Capacity of tissue machine | 8rolls/H |
| Bearing capacity: | Max. 10tons (including spool shaft) |
| Working time: | 24Hours /7 days |
| Paper roll diameter: | φ1000-3500mm |
| Paper roll width: | ±3700mm |
| Max. Width including spool shaft: | ±5800mm |
| Travel distance: | ±2*200m straight + 2*15m cross direction |
| Travel speed: | Max. 40m/min (loaded) Max. 60m/min (unloaded) |
Chain conveyer, chain pitch P=63.5mm, V-slat width: B=50mm, slat length: B=250mm, Thickness: S=8 mm, Material 16 manganese.

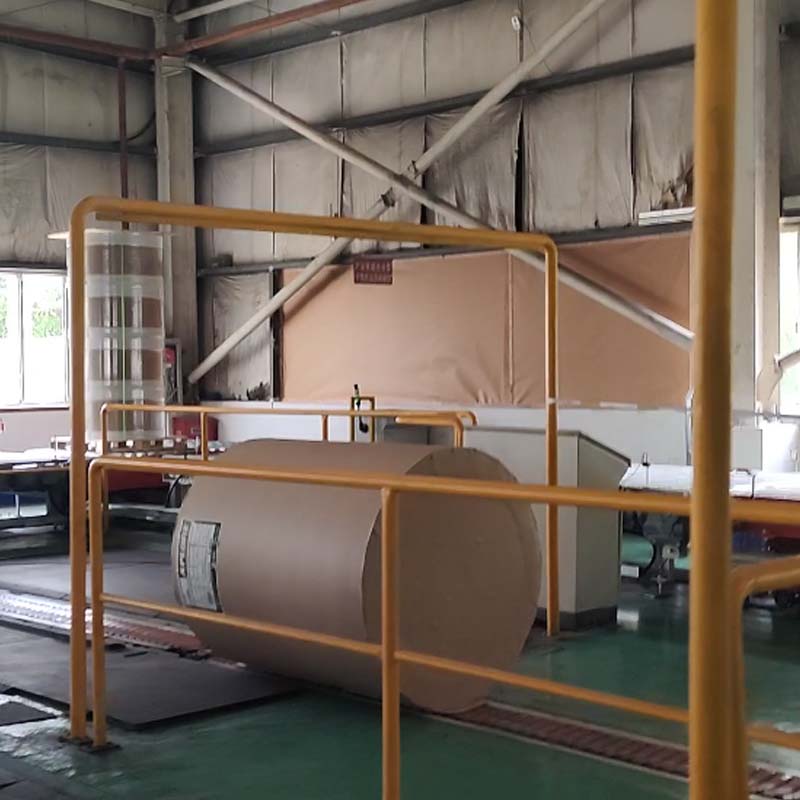

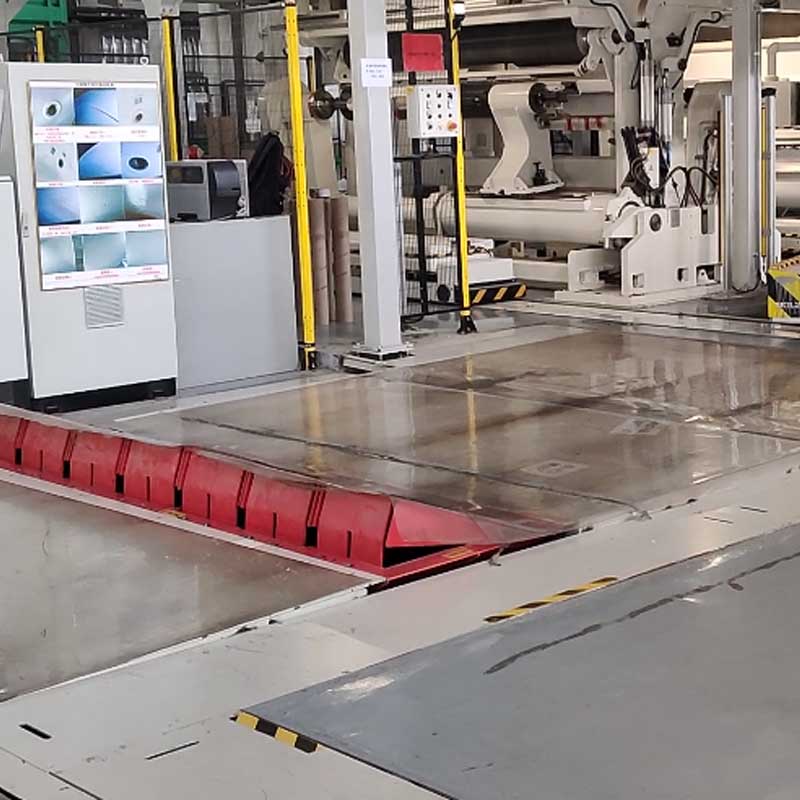

Slat are being made V type to transport paper rolls with a 170-degree angle.
Slat conveyor weight capacity: 3000kg/m...
Bearings in roller of conveyor chain for running flexible and being greased through the space of the chain roller. Not often and no
