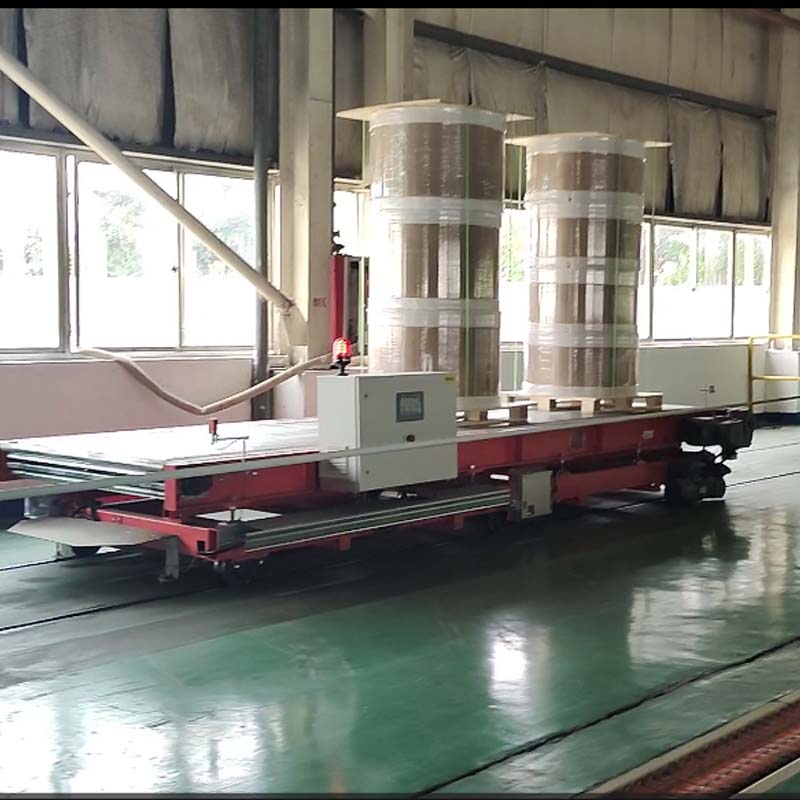

V Slat Conveyor Cart for Paper Mill/Paper Machine
This system is used in the transportation of jumbo tissue roll.

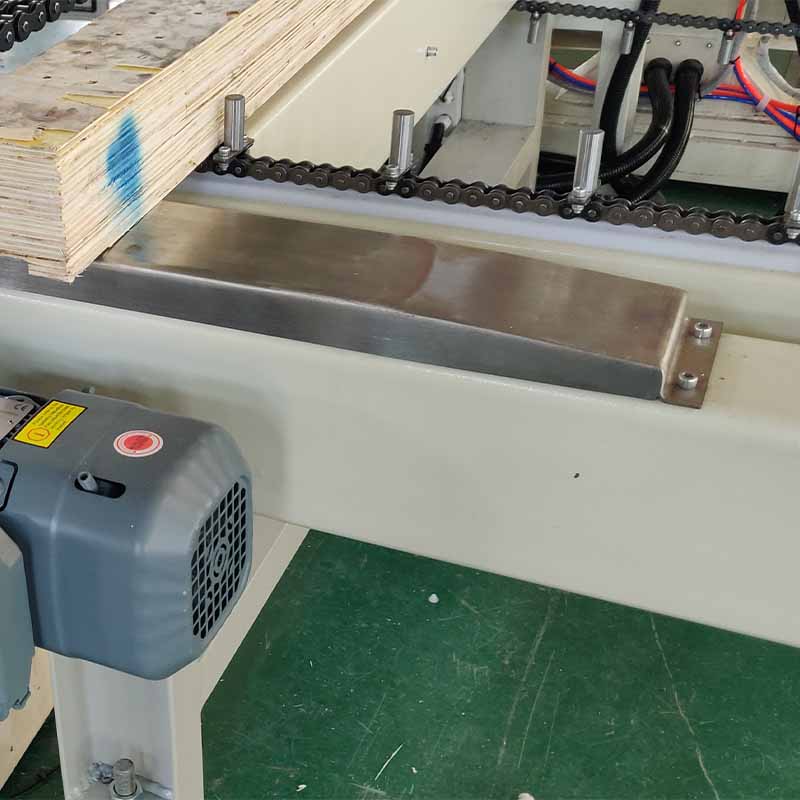

Includes main machine frame, wheels, driving unit motor (brake, VFD) geared box, as well as the accessories.
Product Details
| Capacity of tissue machine | 8rolls/H |
| Bearing capacity: | Max. 10tons (including spool shaft) |
| Working time: | 24Hours /7 days |
| Paper roll diameter: | φ1000-3500mm |
| Paper roll width: | ±3700mm |
| Max. Width including spool shaft: | ±5800mm |
| Travel distance: | ±2*200m straight + 2*15m cross direction |
| Travel speed: | Max. 40m/min (loaded) Max. 60m/min (unloaded) |

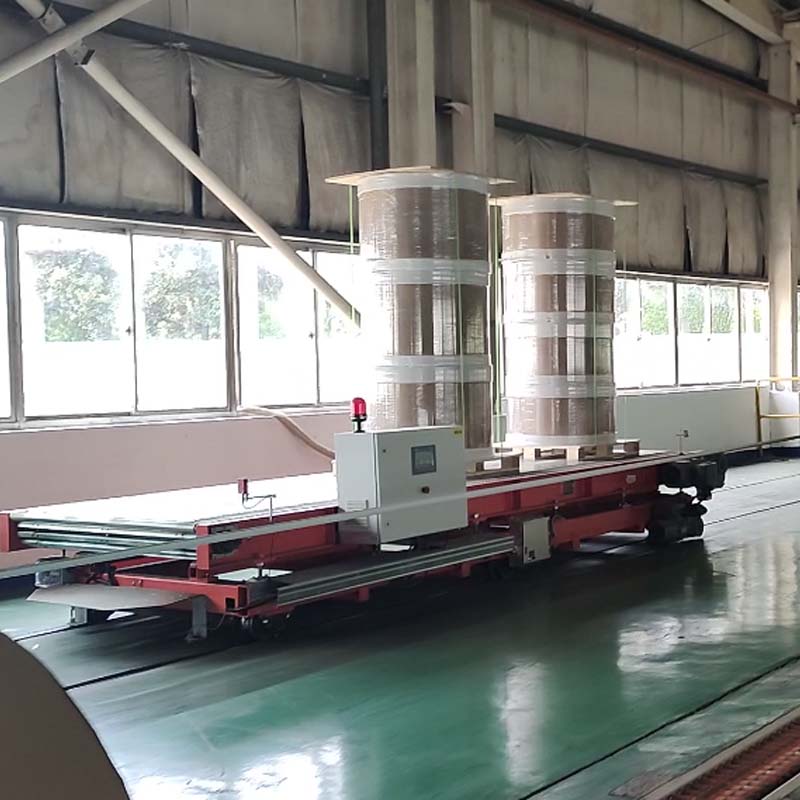

Paper roll conveyor system--V-type slat conveyor
1. The V type is especially made for the paper roll.
2. The v-slat conveyor is usually used in the paper roll packing and transporting system.
3. Automatic conveying the finishing rolls in Paper making tactory, also can be used to convey other products with roll shape.
Technical information
