Slat Conveyor Conveys Roll Paper

Slat conveyor  It is appropriate for conveying all sorts Cylindrical objects, such as movie rolls, paper rolls, etc.It can transport a single piece of fabric with a large weight, or stand up to a giant influence load.

  Contact Now
Product Details

Technical specifications

V-type slat conveyor

 Chain pitch:

 P = 63.5 mm

 Slat width:

 B = 55 mm

 Slat length:

 L = 250 mm


 S = 8mm,  Stainless steel, or carbon steel

 Length of conveyor


 No. Of conveyor


 Speed of conveyors


 Slat bearing:

 HRB, China/SKF

 Gear motor:

 SEW, Germany/Chinese famous motor

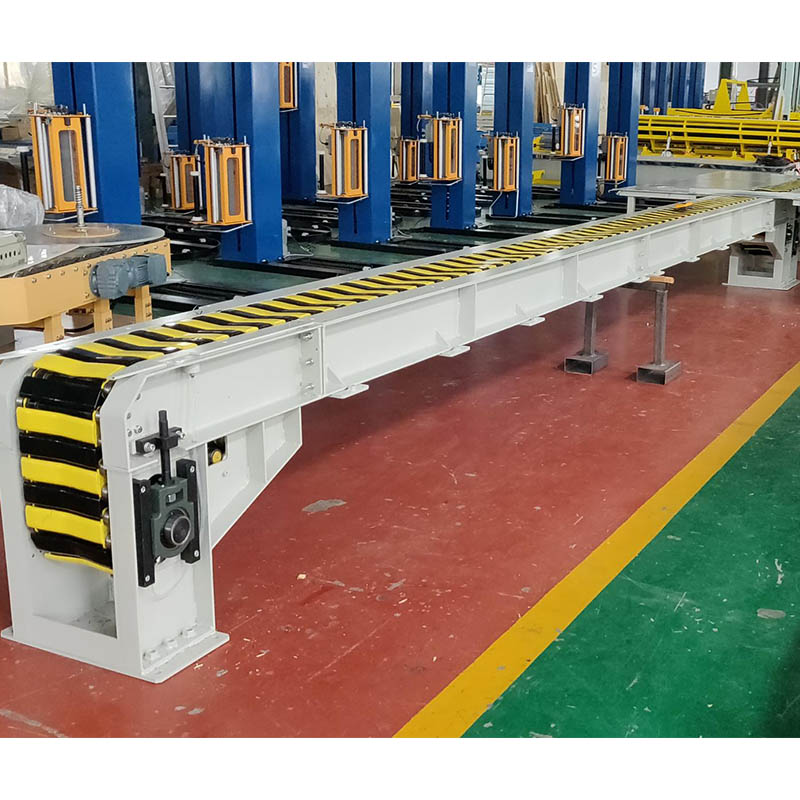

Slat Conveyor

The conveyor slat is made in V-Shaped, Angle: 170°.

--Loading ability of slat conveyor: 3000 kg/m .

--Chain rollers hooked up with bearing inside, No oil and No infection on paper rolls.

--Heavy responsibility metal structures, modular design.

--Equipped with vertical shaft using tools reducer.

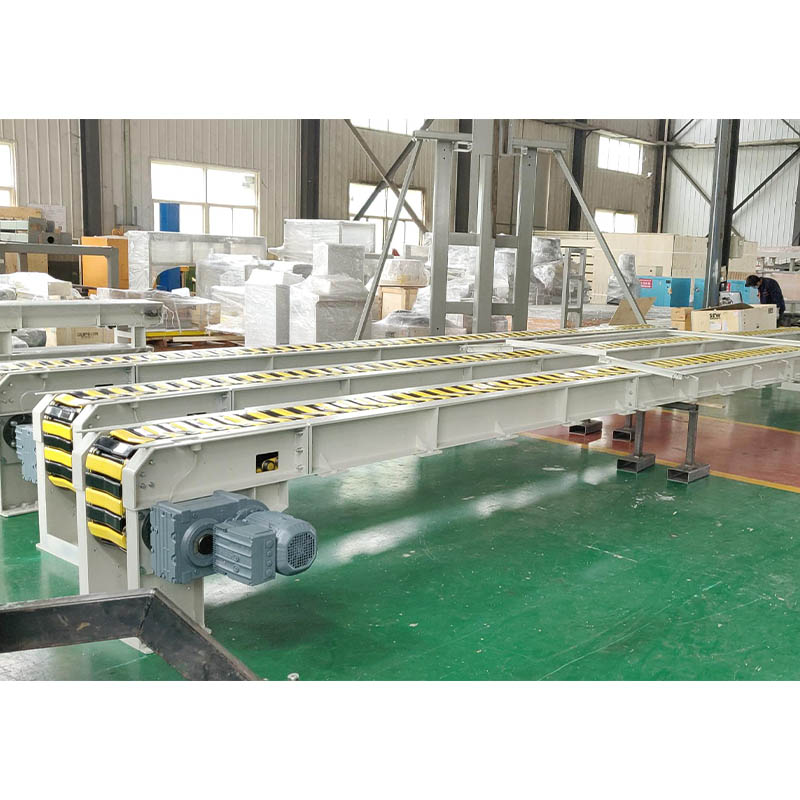

Slat Conveyor
