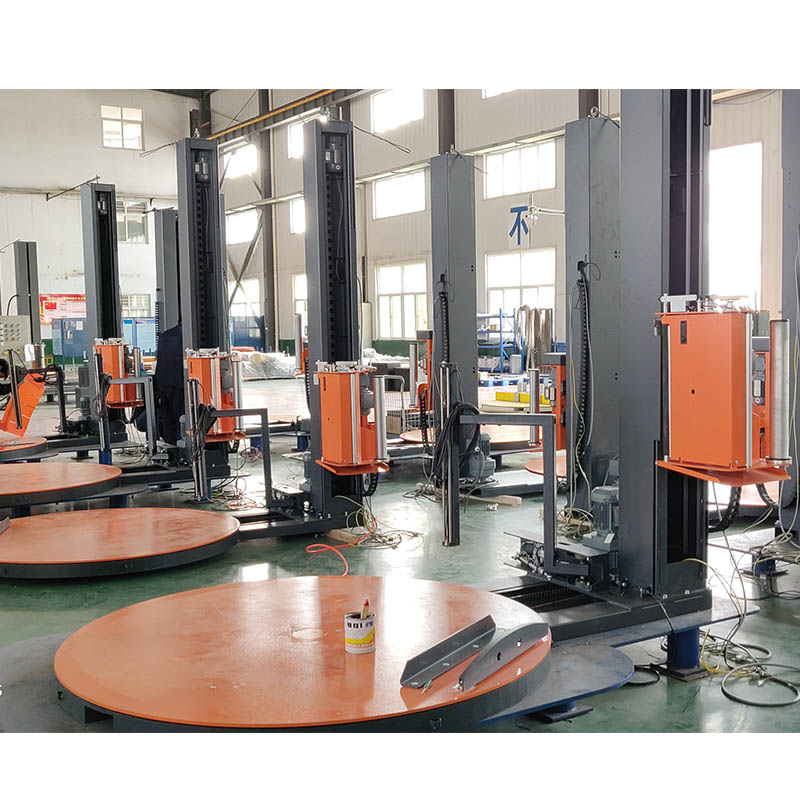

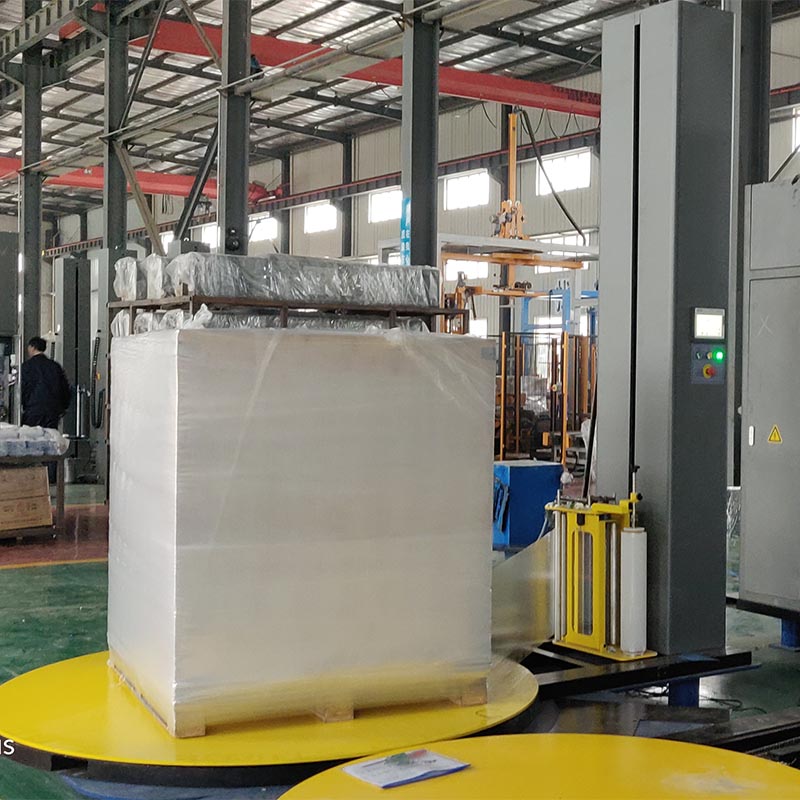

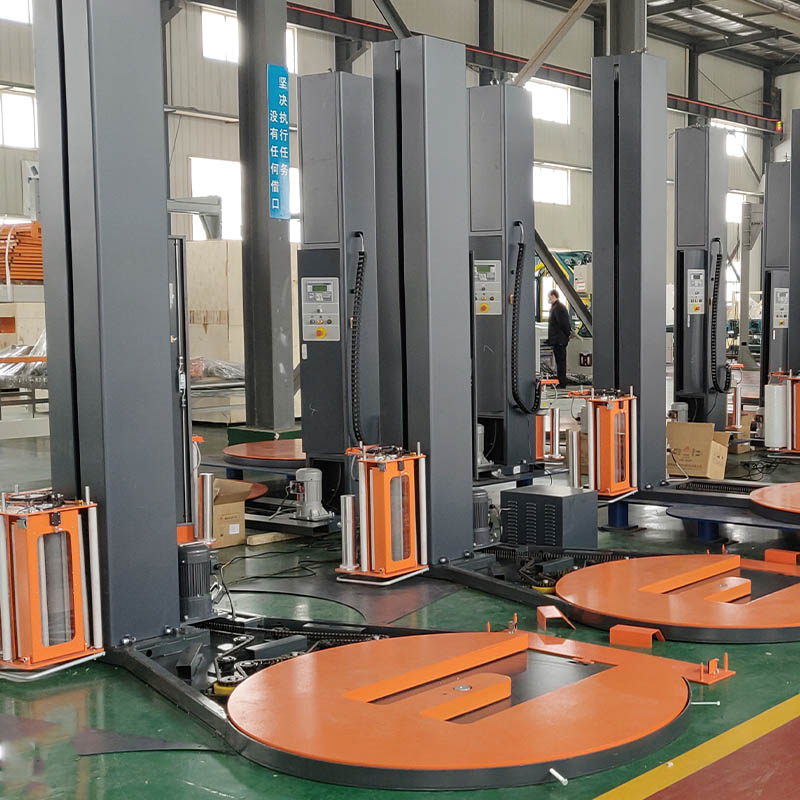

National Standard Pallet Wrapping Machine
Diameter: 2000mm; turntable height: 550mm.
3 strands chain conveyor, with powder coated steel to cover between chains;
Turntable speed max. 15rpm;
Product Details
| Control system | PLC control system |
| Photo eye pallet height sensor | |
| 3-12 RPM variable turntable speed by frequency changer | |
| Film carriage | Powered pre-stretch system to 300% to min film consumption |
| Film delivery barlable speed by spparate AC Drive Motor | |
| Heavy duty double-chain carriage lift, calm and safety | |
| Technology Data | Max load size(mm): 1200(L)X1200(W)X2400(H) |
| Turntable dia: 1650mm | |
| Turntable Height: 77mm | |
| Turntable weight capacity: 2000kgs | |
| Turntable speed: 3-12rpm | |
| Electrics: 220V 50HZ 1 phase | |
| Power: 1.5KW | |
| Option | Ramp |
| Top plate |
Strong steel frame to keep film carriage running steady during wrapping progress.
Height: to be designed according to the packing height 2,000-2800mm.
