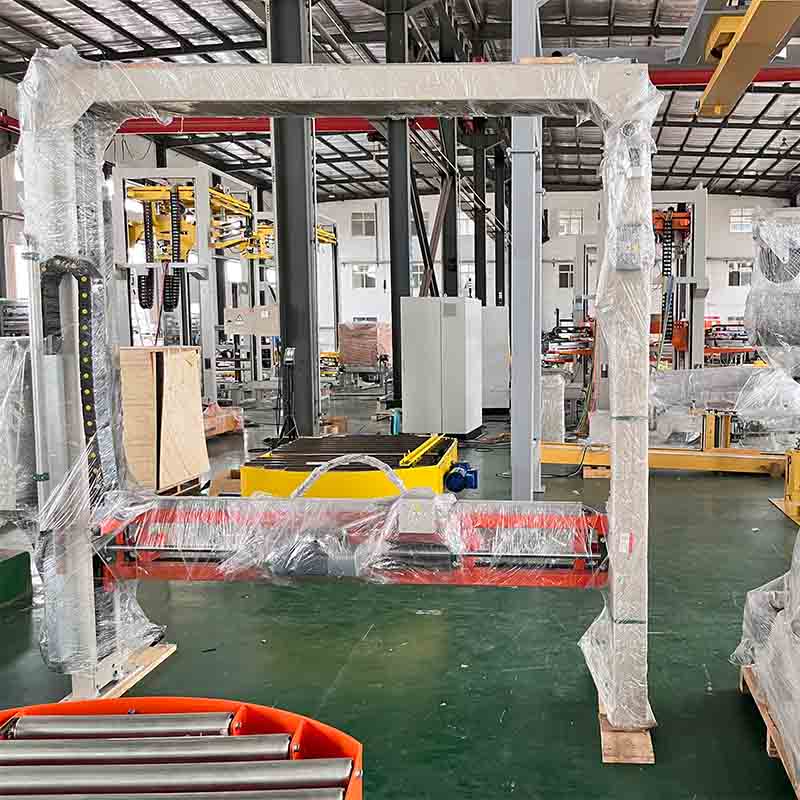

Pallet Strapper Vertical Pallet Strapping Line Auto Line
Description and electric brand
1.1 The whole machine is equipped with automatic swords threading system.
1.2 With the function of auto tape threading.
1.3 The lifting of strapping heading is driven by gear motor SEW to ensure stable operation and reliable braking.
Item | Specification |
Wrapping specifications | (500-1300)mm*(500-1200)mm. |
Packing height | 2400mm |
Packaging efficiency | 30-60 loads/H available. (Option: or 20-40 loads/H) |
Arm speed | 0-25rpm frequency control. (Option 15rpm, 35rpm) |
Arm performance | High sensitivity emergency brake system, the arm automatically reset. |
Film carriage system | Pre-stretch film carriage, stretch ratio up to 300%, automatic film feeding & cutting device, adjustable speed. |
Lifting column | Chain structure, speed variable frequency adjustable. |
Control system | PLC programmable control, wrapping layer adjustable, automatic height sense. |
Machine weight | 680KG (without support) |
Machine dimensions | 3440mm*1800mm*3220mm (without convey line) |
Power/ voltage | Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V |
Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line) | |
With the strapping head of model VK10 K120-16 of TITAN Germany. The internal of every strapping is 15s.
1.5 The PLC is SmartS7-200 control system (SIEMENS). The customer can v set the times and distance as per the requirement.
