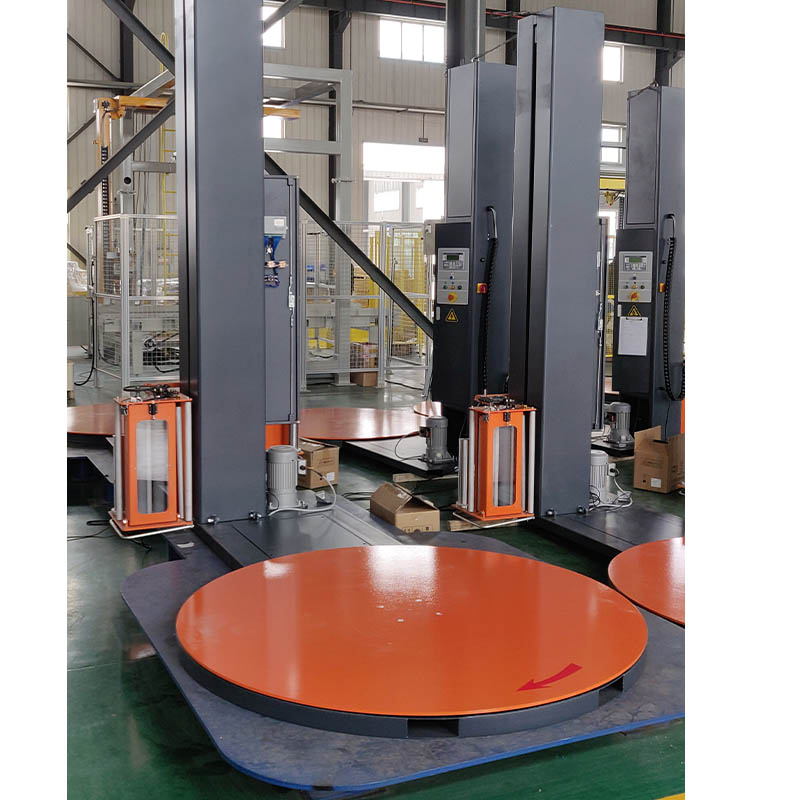

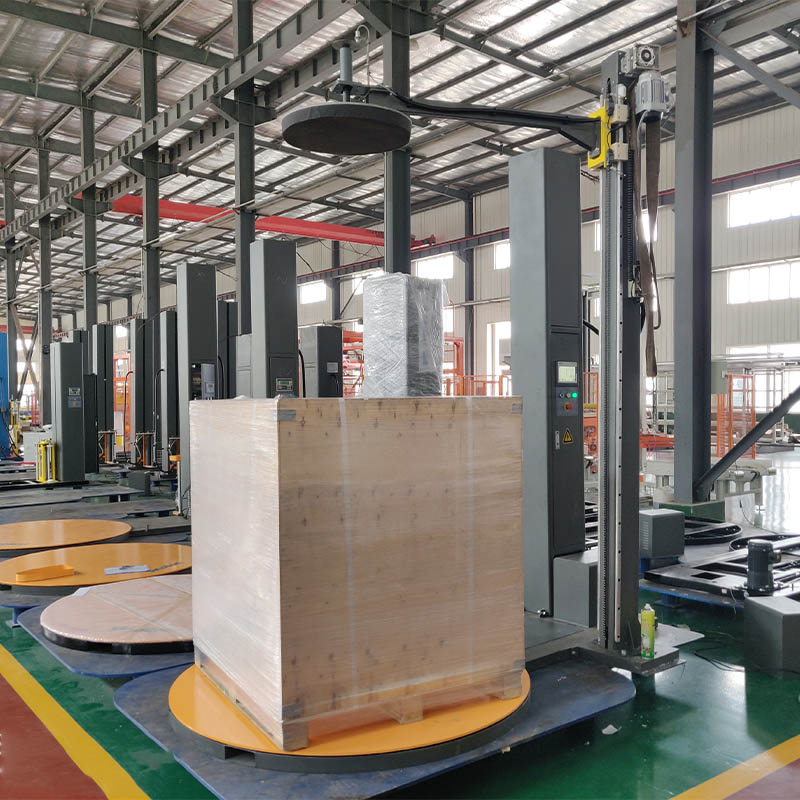

Semi-Automatic Pallet Stretch Film Packing Packaging Wrapper Wrapping Machine

Automatic stretch pallet wrapping machines work process is using LLDPE stretch film (a plastic film) to wrap goods which load on the pallet, the stretch film provides extra support while the products are being transported or stocked so that they do not tip, spill, or otherwise damage. It is widely used in the chemical industry, electronic industry, building materials, home appliances, paper making, foodstuff & drink, etc, especially container goods transportation in foreign trade.

  Contact Now
Product Details

Control systemPLC control system
Photo eye pallet height sensor
3-12 RPM variable turntable speed by frequency changer
TurntableGo home position after wrap cycle finished
Soft start/soft stop
Heavy duty chain drive
Film carriagePowered pre-stretch system to 300% to min film consumption
Film delivery barlable speed by spparate AC Drive Motor
Heavy duty double-chain carriage lift, calm and safety
Technology DataMax load size(mm): 1200(L)X1200(W)X2400(H)
Turntable dia: 1650mm
Turntable Height: 77mm
Turntable weight capacity: 2000kgs
Turntable speed: 3-12rpm
Electrics: 220V  50HZ 1 phase
Power: 1.5KW

Automatic stretch pallet wrapping machines

Rotary table type stretching film winding machine automatic pallet stretch film wrapping machine stretch film strapping machine airport luggage strapping stretch film pallet wrapping packing machine for commercial use

Automatic stretch pallet wrapping machines
