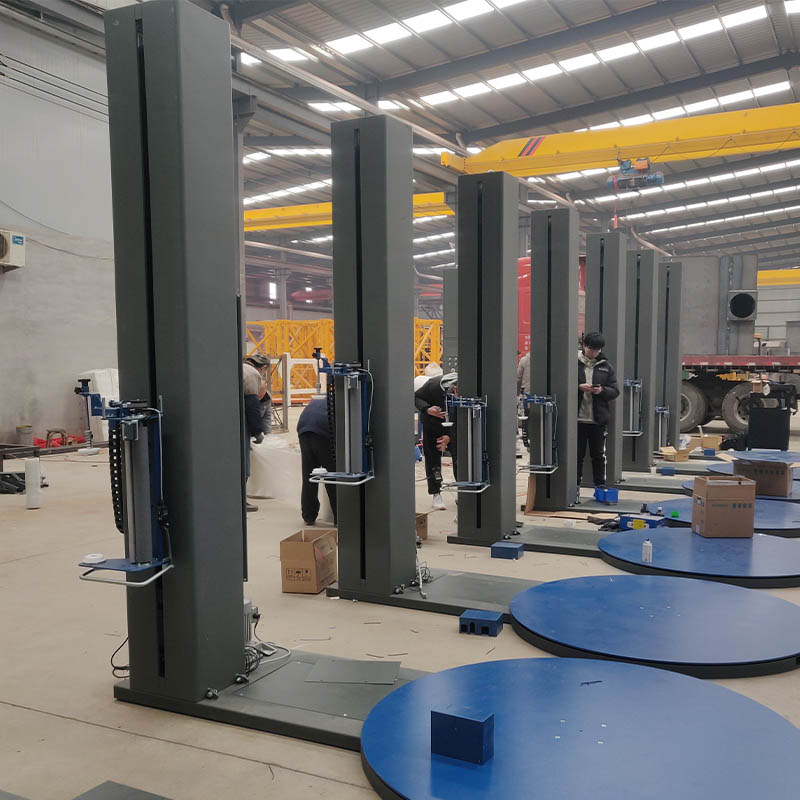

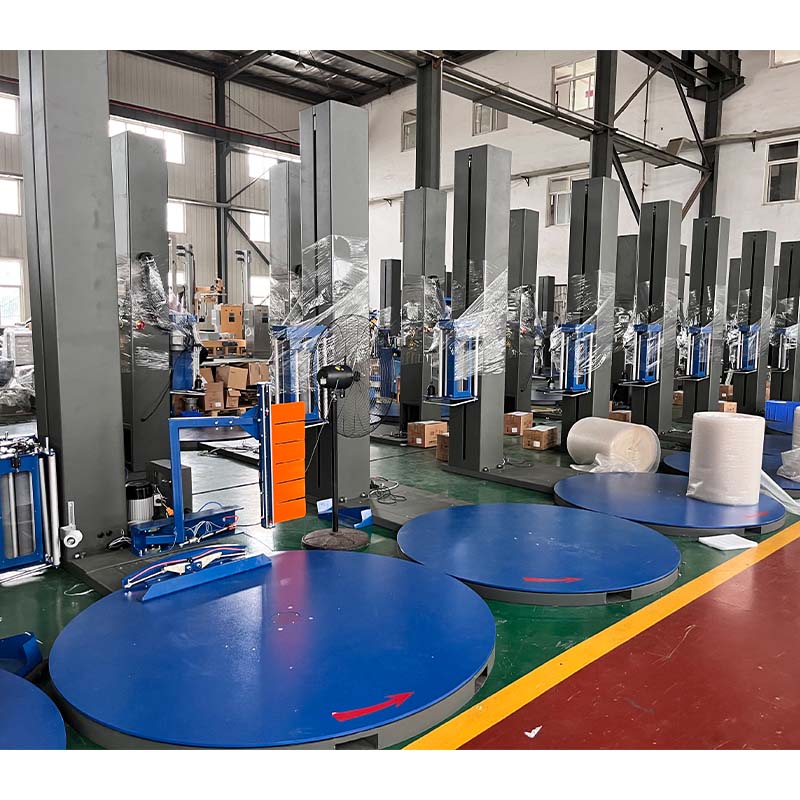

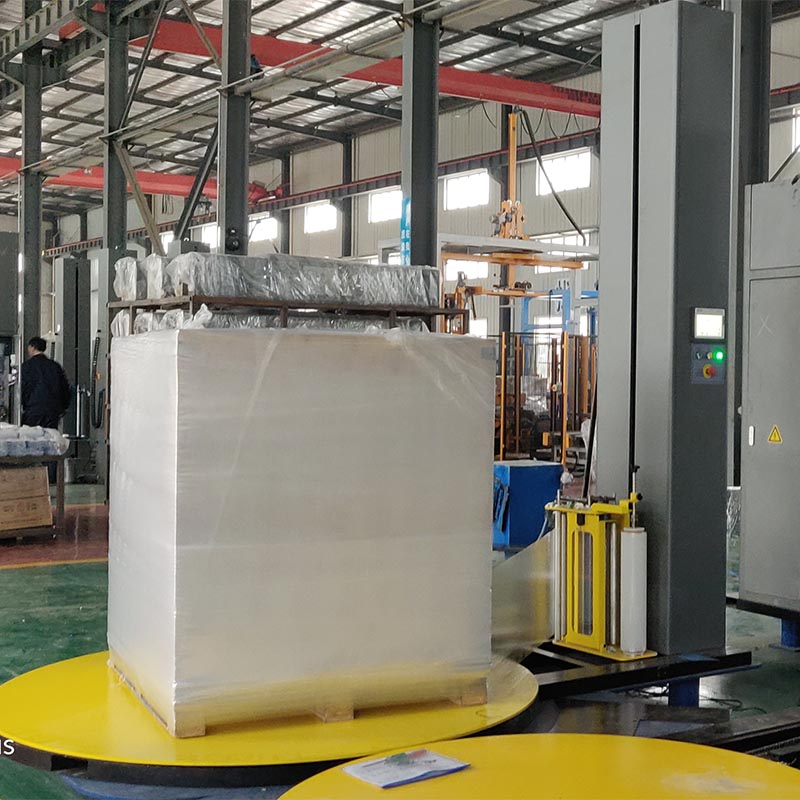

Wrapping Machine for Door Turntable Stretch Wrapping Machine
Pre-stretch film wrapper/packaging machine/wrapping machine，
After finishing stretch wrapping, the film tail will be cut and next film head is clamped automatically.
Air blowing to wrap film head into pallet.
Product Details
| Specification | |
| Product name | Pallet stretching wrapping machine |
| Model | T1650FL pallet stretching wrapping machine |
| Wrapping size | 500-1200mm(L) x 500-1200mm(W) |
| Wrapping height | Max.2400mm (1800mm/2800mm available) |
| Package | 1) Inner: Iron frame |
| 2) Outer: wooden box | |
| P.S: Customized packages are also welcome | |
| Turntable size | Dia:1650mm Height:78mm |
| Turntable bearing | Max. 2000kgs |
| Turntable speed | 0~15RPM (turntable transducer adjust, steady stop and start) |
| Machine weight | 650kg |
| Machine dimension | 2745mm×1650mm×2860mm |
| Control system | PLC control, top & bottom wrapping circle 1-20 adjustable; auto high sense; auto turntable reset |
| Work efficiency | 20-40 loads/H |
| Film carriage system | Driven pre-stretch carriage, stretch ratio up to 300% |
| Tower | Double chain design. Lifting speed adjustable. |
| Electric | AC220V/50Hz 1 phase |
| Power | Turntable 0.75kw, film carriage 0.35kw, tower 0.37kw |
PLC control system with touch screen, 8 sets of parameter settings available
Cutting wire to cut film automatically after wrapping finished.
Film tension control adjustable; Carriage up/down speed adjustable
