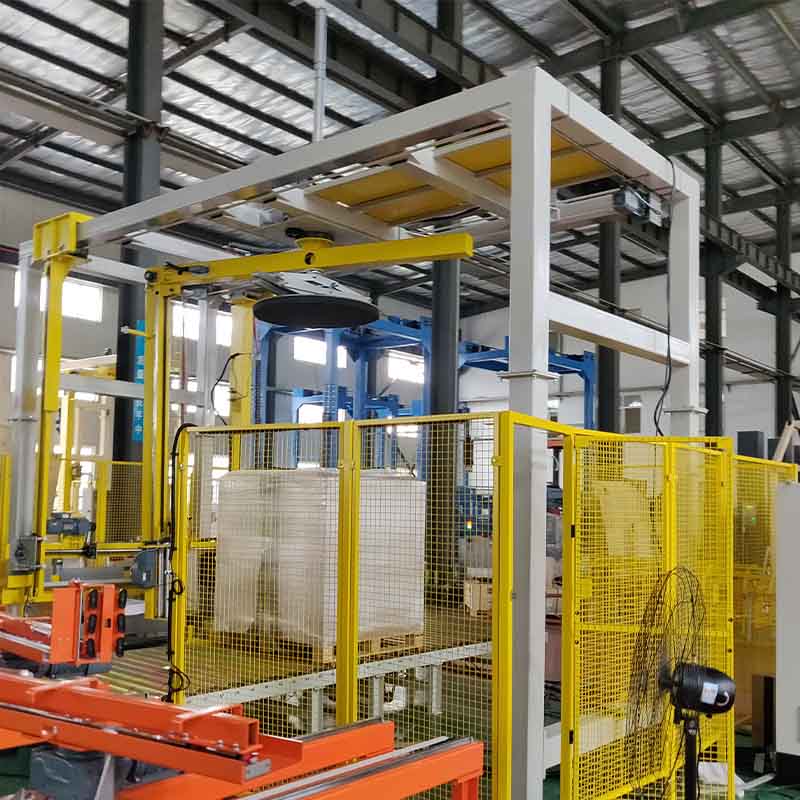

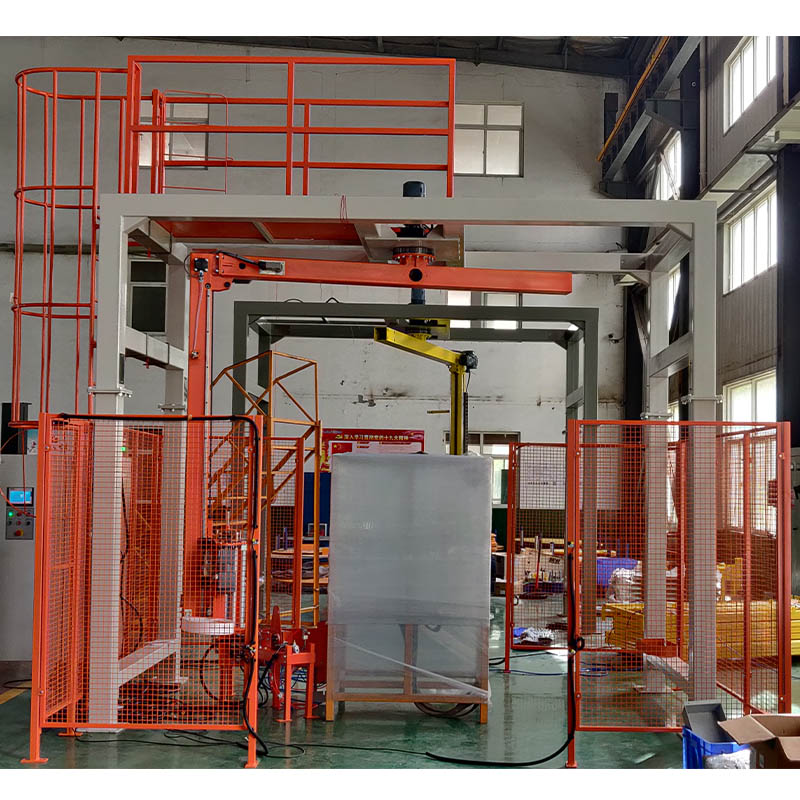

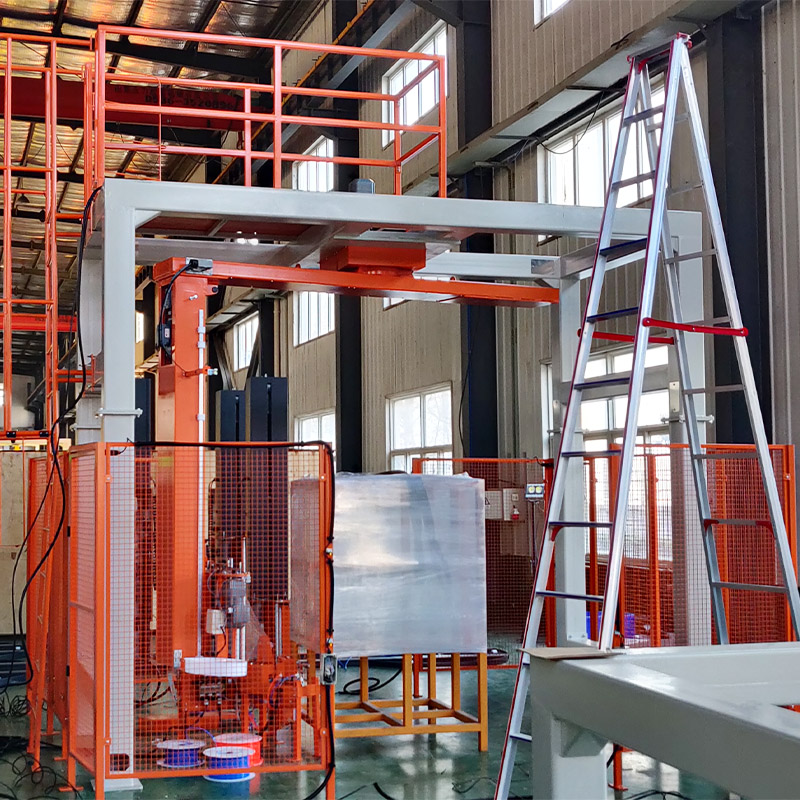

Rotary Arm Pallet Wrapping Machine Fully Automatic
The maximum rotary speed of arm can up to 35 rpm. It will save labour cost obviously.
The top platen will keep the stability of the pallet to ensure excellent wrapping results.
Product Details
| Item | Specification |
| Wrapping specifications | (500-1300)mm*(500-1200)mm. |
| Packing height | 2400mm |
| Packaging efficiency | 30-60 loads/H available. (Option: or 20-40 loads/H) |
| Arm speed | 0-35rpm frequency control. (Option 15rpm, 25rpm) |
| Arm performance | High sensitivity emergency brake system, the arm automatically reset. |
| Film carriage system | Pre-stretch film carriage, stretch ratio up to 300%, automatic film feeding & cutting device, adjustable speed. |
| Lifting column | Chain structure, speed variable frequency adjustable. |
| Control system | PLC programmable control, wrapping layer adjustable, automatic height sense. |
| Machine weight | 680KG (without support) |
| Machine dimensions | 3440mm*1800mm*3220mm (without convey line) |
| Power/ voltage | Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V |
| Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line) | |
--Powered pre-stretch system up to 300% to min film consumption(Prestretch ratio can be specially made according your requirements.)
--Film delivery variable speed by separate AC Drive Motor
--Film dancer-bar with variable speed output
--Rotating Power slip ring provide power required for carriage drive on rotary arm.
