Automatic Wrapping Machine with High Efficiency

Rotating ring must be positioning precisely, rotating ring speed inverter adjustable;

Rotating ring lift with belt for steady operation, anti-full device installed for safety;

Film head rotate with ring, analog control for flexible film delivery speed;

Conduct trolley to supply power for film pre-stretch, good performance when running to save wrapping material;

Plug between main control cabinet and wrapper for easier installation and maintenance.

Contact Now E-Mail Telephone WhatsApp

Product Details

Item	Specification
wrapping size(mm)	500-1200mm (L)×500-1100(W)
Wrapping height (mm)	2200mm
Packing efficiency	20-40 loads / hour
Turntable turning speed	0-15rpm (Adjustable, soft start&stop)
Roller conveying speed:	20mpm adjustable
Turntable diameter	1800mm
Height of turntable	To be designed based on customer requirements
Power supply	2.4KW 380V 50HZ 3Phase
Max. load capacity	1500kgs

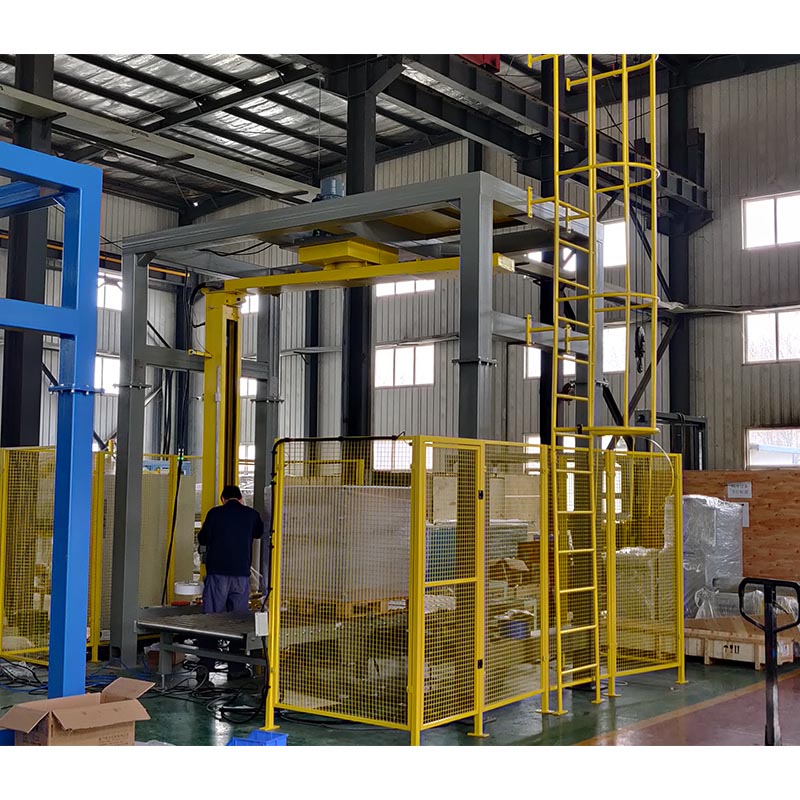

Pallet Chain Wrapping Machine

Powered pre-stretch system up1:3.5 to min film consumption(Pre-stretch ratio can be specially made )
2.Carriage door opens for effortless roll change and thread film
3. Film delivery variable speed by separate AC Drive Motor.
4. Heavy duty double-chain carriage lift, calm and safety.

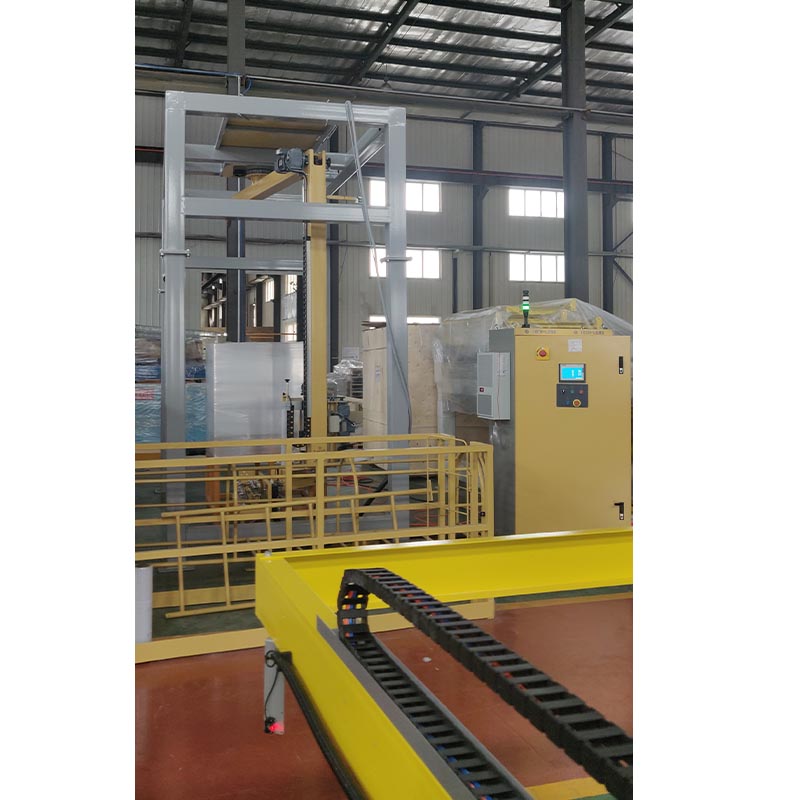

Pallet Chain Wrapping Machine
