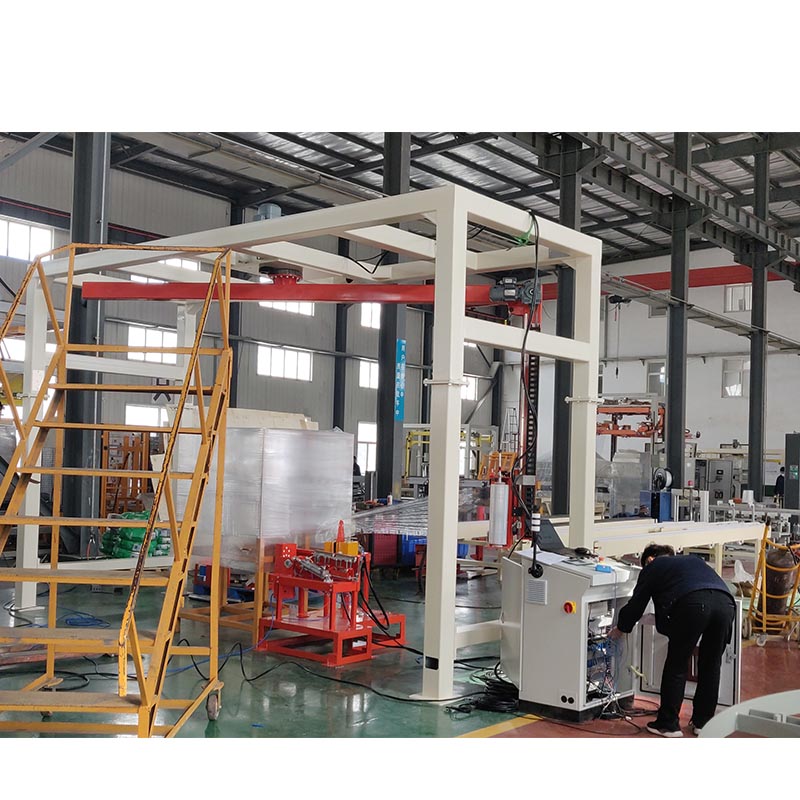

Automatic Rotary Arm Stretch Wrappers Rotary Arm Wrapping Machine

Film carriage:
Pre-stretch 300% to min film consumption(Prestretch ratio can be specially made)
Carriage door opens for effortless roll change and thread film
Film delivery variable speed by separate AC Drive Motor
Rotating Power slip ring provide power required for carriage drive on rotary arm

  Contact Now
Product Details

Rotating ring inner diameter1200-2000mm
Wrapping dimensionWidth: 500-1100mm; Height: 500-1000mm; Length: 500-2000mm
Rotating ring speedMax. 30rpm
Compressed air pressure0.5Mpa
Air consumption10L/M
Motor powerrotating ring: 2.2kw  380V, 60HZ, 3phase

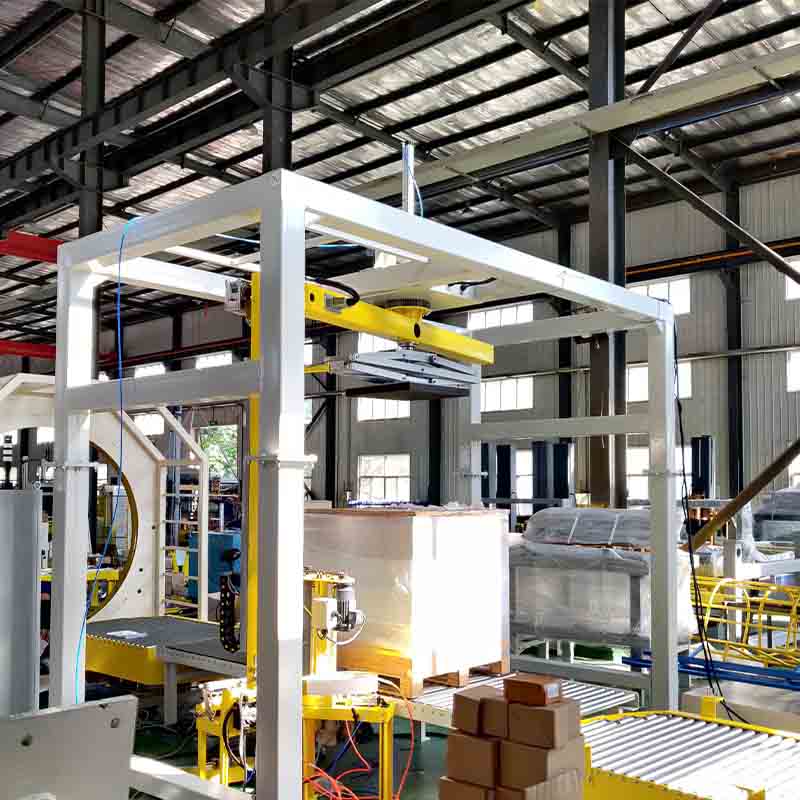

Rotary Arm Wrapping Machine

OMRON PLC control system
Photo-eye pallet height sensor
0-7 separate top, bottom&up-down wrap count selectors
Reinforce wrap allow more wrap on same location
Film Tension Control adjustment on the panel
3-15RPM variable arm speed by frequency changer
Separate variable carriage up/down speed
Cycle pause capability

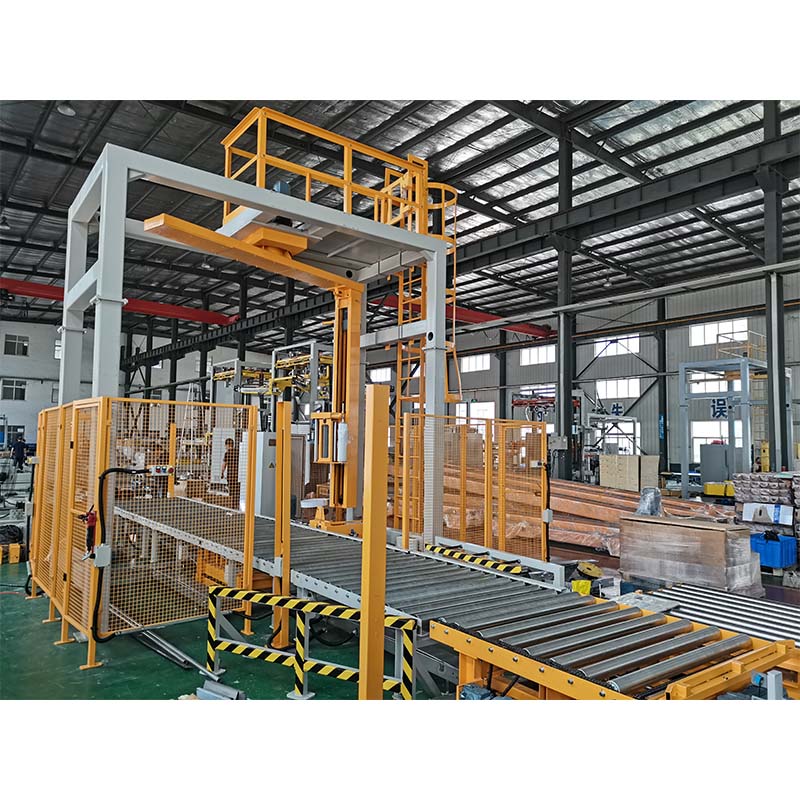

Rotary Arm Wrapping Machine
