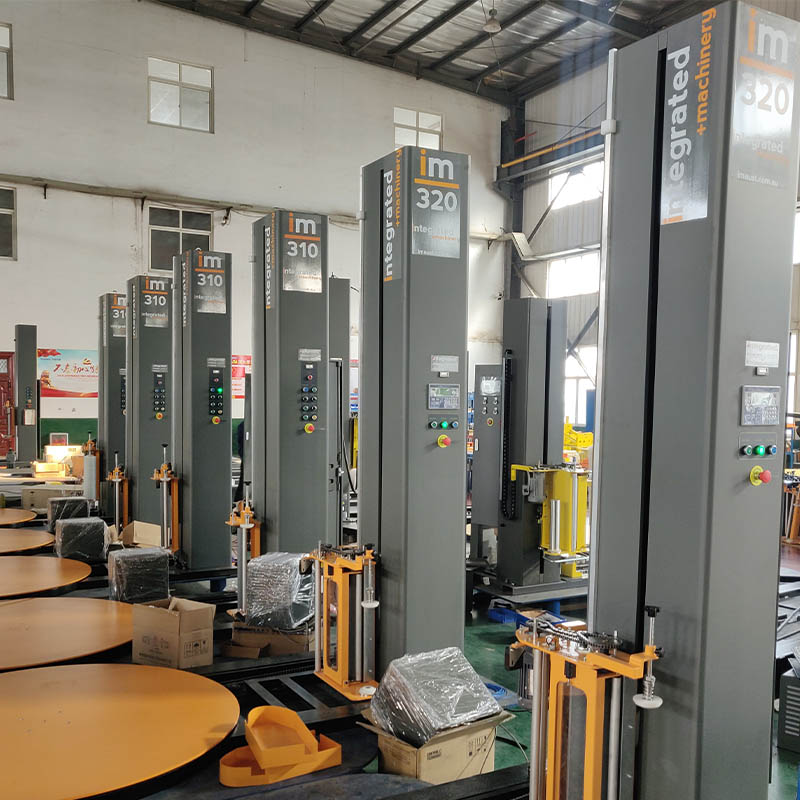

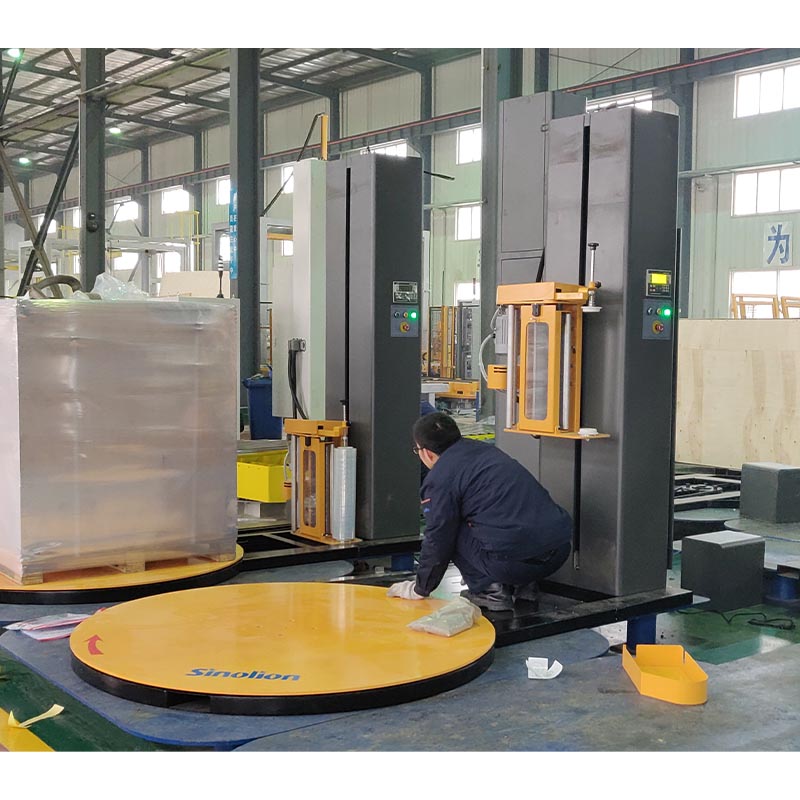

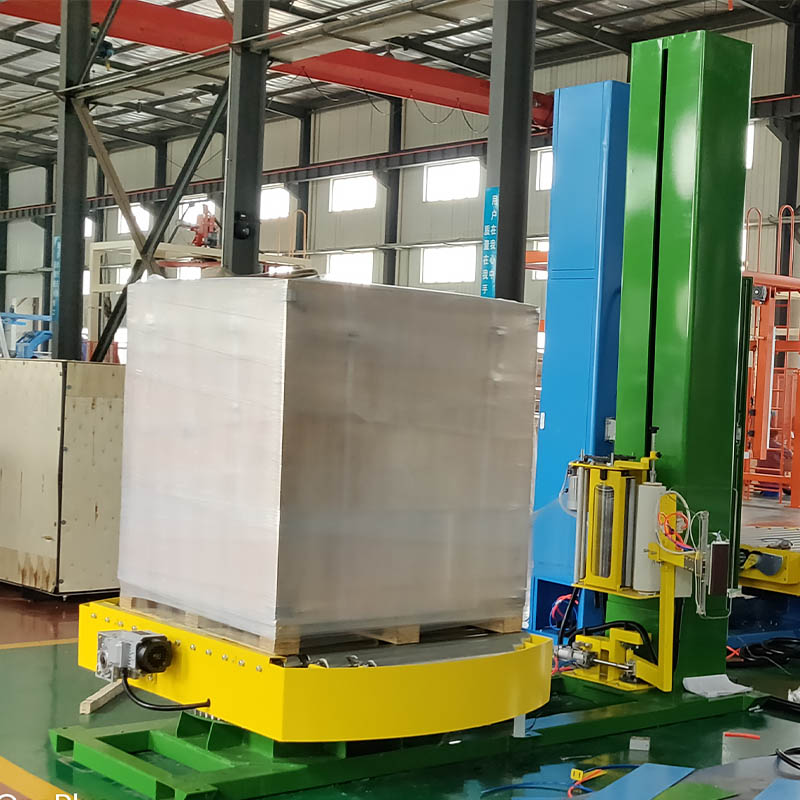

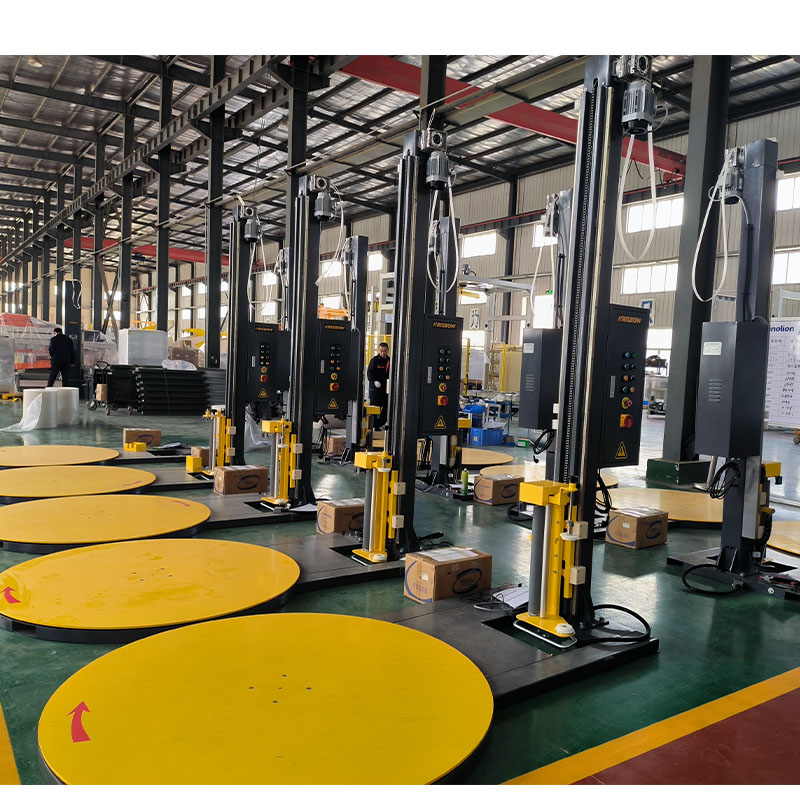

Pre-Stretch Turntable Front Film Carriage Wrapping Machine
Pallet packaging desktop is used to wrap stretch movie round a loaded pallet. Stretch movie gives safety whilst the merchandise are being transported&storaged.
Product Details
| Control system | PLC control system |
| Photo eye pallet height sensor | |
| 3-12 RPM variable turntable speed by frequency changer | |
| Turntable | Go home position after wrap cycle finished |
| Soft start/soft stop | |
| Heavy duty chain drive | |
| Film carriage | Powered pre-stretch system to 300% to min film consumption |
| Film delivery barlable speed by spparate AC Drive Motor | |
| Heavy duty double-chain carriage lift, calm and safety | |
| Technology Data | Max load size(mm): 1200(L)X1200(W)X2400(H) |
| Turntable dia: 1650mm | |
| Turntable Height: 77mm | |
| Turntable weight capacity: 2000kgs | |
| Turntable speed: 3-12rpm | |
| Electrics: 220V 50HZ 1 phase | |
| Power: 1.5KW | |
| Packing efficiency: 20-40 load/h base on load | |
| Option | Ramp |
| Top plate |
Equipment with a metal casing must have a reliable safety grounding device;The surface of the weld seam of the component is evenly welded, and there must be no defects such as cracks, slag inclusions, welding tumors, burn-through, arc craters, and needle-like pores.

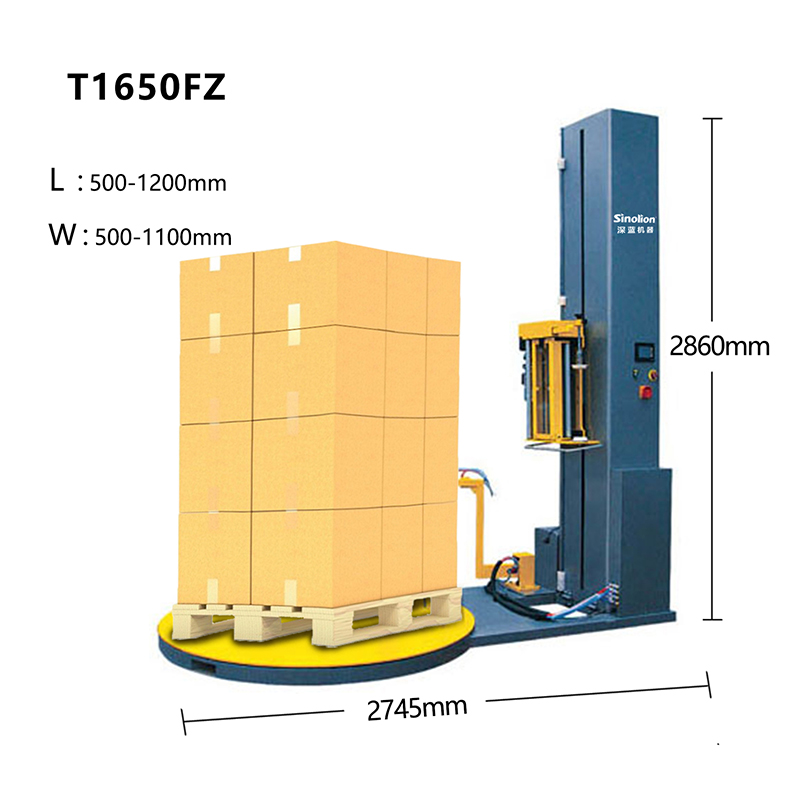

Technology Data
Max load size: 1200 l 1200 w 1800h mm
Turntable diameter: 1650mm
Turntable height: 78mm
Turntable weight capacity: 2000kg
Packing height: 1800mm
Machine weight: 700kg
Electrics: 220V 50Hz 1phase
Turntable speed: 0-12rpm
