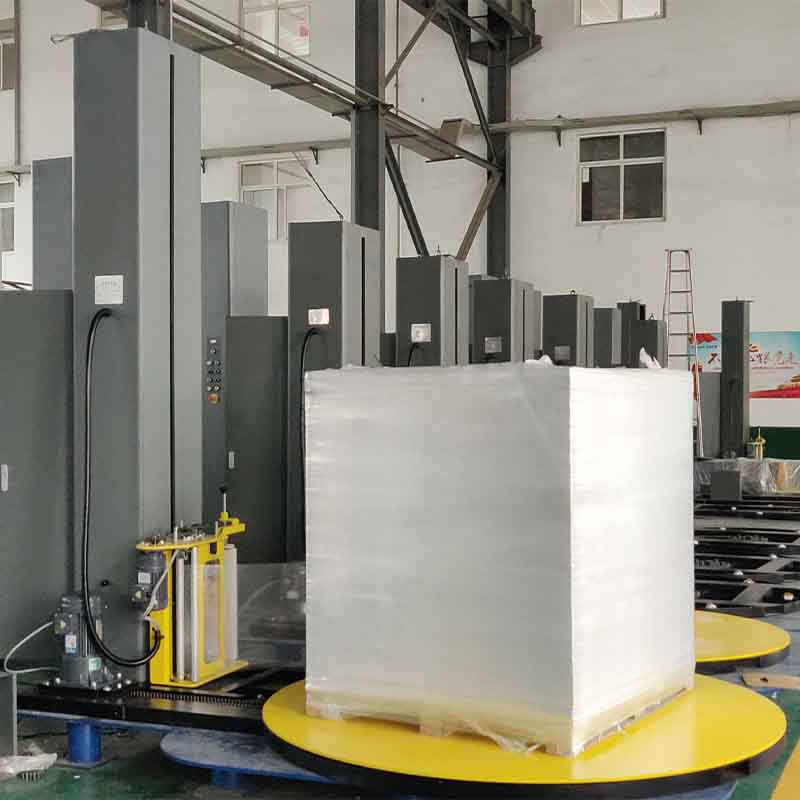

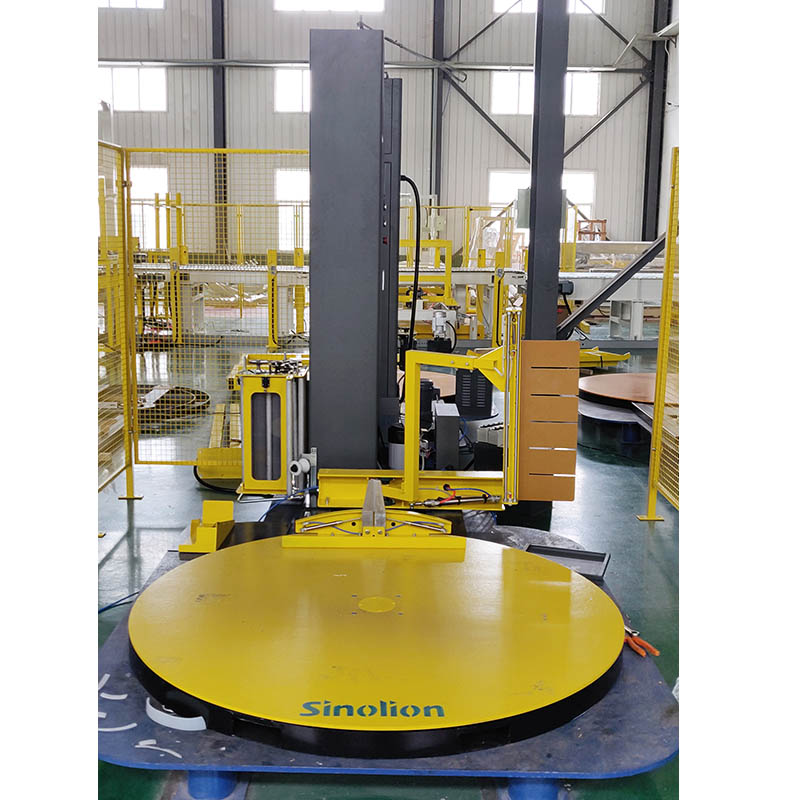

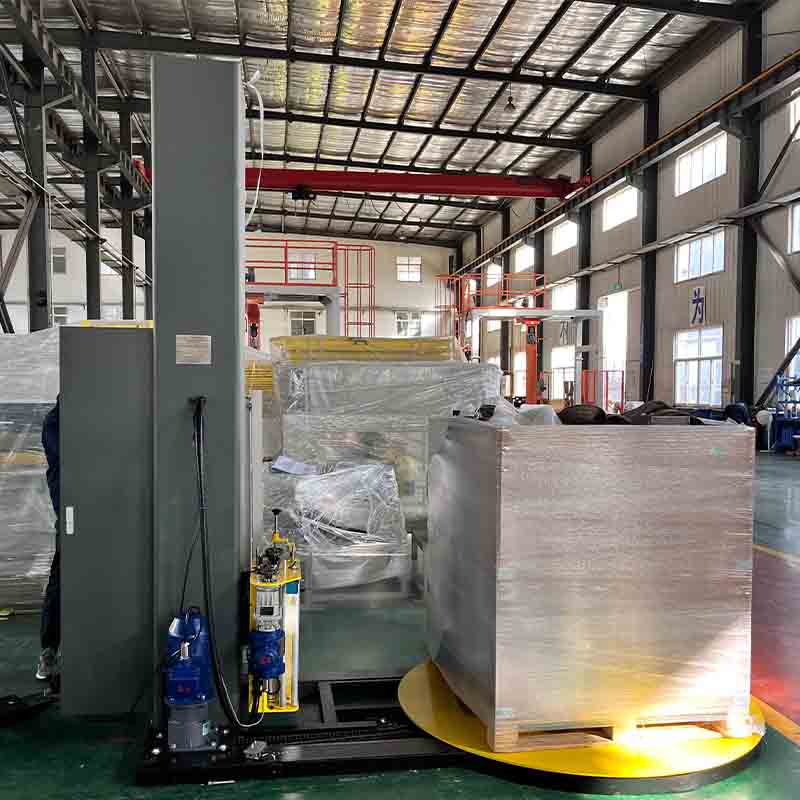

Automatic Shrink Stretch Pallet Wrapping Machine Film Packing Pallet Wrapper
Pallet Wrappers in Dispatch Operations Significantly Increase Output, Eliminate Worker Strain and Reduce the Likelihood of Damaged in Transit. We Offer a Range of Pallet Wrappers from Base Models Through to Fully Automatic Models, and are Fully Customized with a Variety of Optional Functions to Meet the Various Requirements of Customers. Contact Us Today, We Can Advise the Pallet Wrapper Solutions Depending on Your Budget and Output for Your Business.
Product Description
| Control system | PLC control system |
| Photo eye pallet height sensor | |
| 3-12 RPM variable turntable speed by frequency changer | |
| Turntable | Go home position after wrap cycle finished |
| Soft start/soft stop | |
| Heavy duty chain drive | |
| Film carriage | Powered pre-stretch system to 300% to min film consumption |
| Film delivery barlable speed by spparate AC Drive Motor | |
| Heavy duty double-chain carriage lift, calm and safety | |
| Technology Data | Max load size(mm): 1200(L)X1200(W)X2400(H) |
| Turntable dia: 1650mm | |
| Turntable Height: 77mm | |
| Turntable weight capacity: 2000kgs | |
| Turntable speed: 3-12rpm | |
| Electrics: 220V 50HZ 1 phase | |
| Power: 1.5KW | |
| Packing efficiency: 20-40 load/h base on load | |
| Option | Ramp |
| Top plate |
Technical specifications:
Pallet dimension: 1100mm*1300mm; 1000mm*1200;
Wrapping height: 500mm-2250mm;
Packaging efficiency: Max. 90 pallets/H
Automatic rotary stretch film wrapper R1800FZ-PL is a type of full automatic wrapping machinery that can be operated on line with other automatic machines. It is designed for high stacked loads that are unstable or too heavy to be rotated. It is mainly applied in the wrapping operation of beverage, food and other industries. It is easy to be operated. Pre-stretch carriage can save lots of stretch films and protect the environment.
Advantages:
1. The max speed of arm rotating is 35 rpm. We are the only supplier who can do this and do better in this in China.
2. Good wrapping effectiveness. Excellent film clamp& cuting unit with Europe technology is used. It can supply the best film sealing and cutting result.
