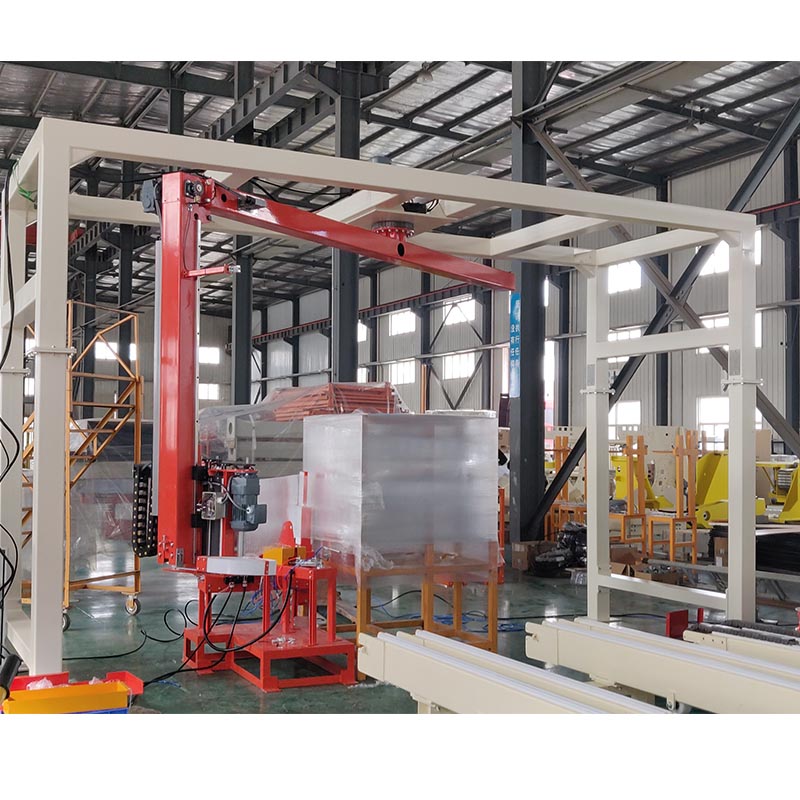

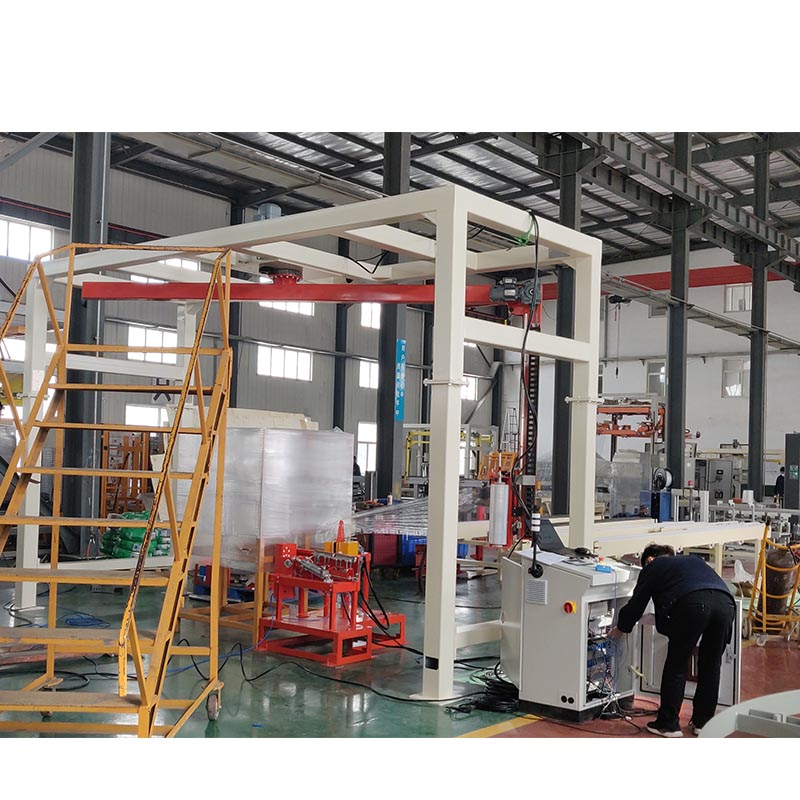

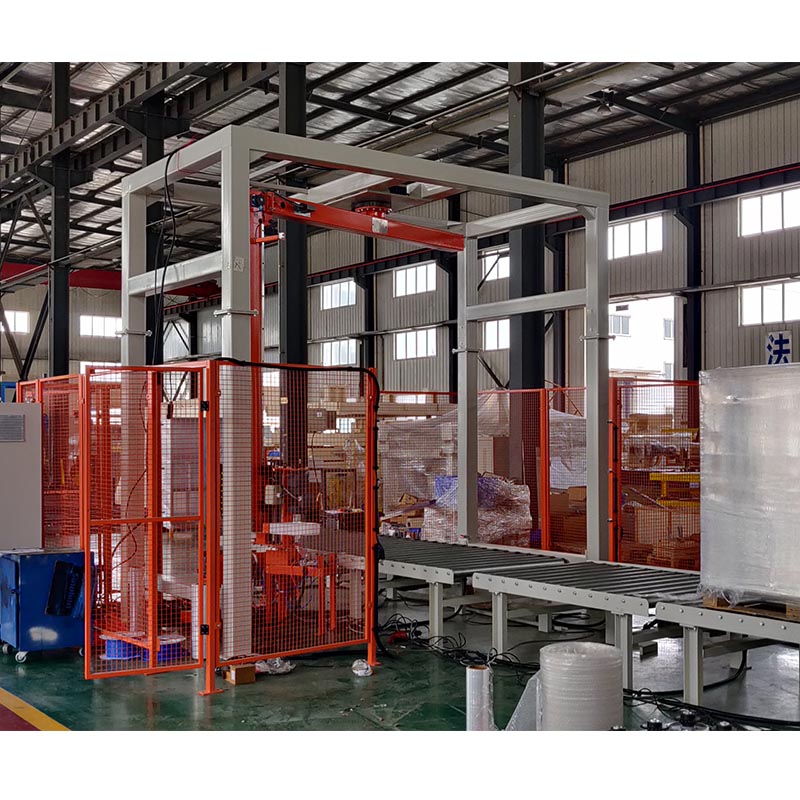

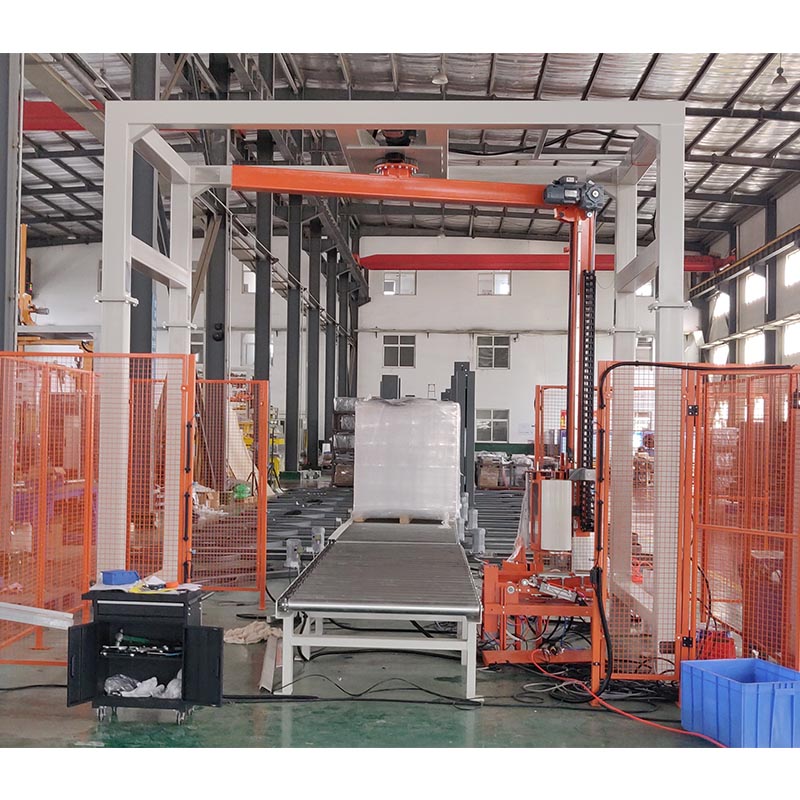

Rotary Arm Stretch Wrapping Machine
Application: Pallet wrapping, pallet wrapper, pallet wrapping and conveying
Wrapping material: stretch film, Pre-stretch film
Rotary arm stretch wrapping machine is widely used for pallet wrapping in drinking industry, food & beverage industry, animal feed industry, chemical industry, electronics, glass industry, paper industry, garments industry, hardware and machinery industry etc, especially used for big size pallet wrapping.
| Wrapping size: | L(500-1300)mm*W(500-1200)mm |
| Wrapping height: | H(1800-2600)mm |
| Wrapping speed: | 30-60pallets/h |
| Rotating speed of the rotary arm: | 0-35rpm, variable frequency control motor driving |
| Function of rotary arm: | automatic brake system, automatic reset |
| Film carriage: | pre-stretch film carriage the stretch ratio up to 250% automatic stretch film feeding |
| Film lifting guide rail: | double chain structure, the lifting speed adjustable |
| Control system: | PLC control system, wrapping layers and times adjustable Automatic height detection of the goods |
| Auto film feeding: | pneumatic driving, auto film feeding, auto film cutting |
| Overall dimension: | 3000mm*2000mm*(2650-3650)mm |
| Power supply: | AC 380V/ 50HZ |
Wrapping size: (500-1300)mm*(500-1200)mm
Wrapping height: H(1800-2600)mm
Wrapping speed: 30-60pallets/h
Rotating speed of the rotary arm: 0-35rpm, variable frequency control motor driving
Function of rotary arm: automatic brake system, automatic reset
Film carriage: pre-stretch film carriage,
the stretch ratio up to 250%,
automatic stretch film feeding
Film lifting guide rail: double chain structure, the lifting speed adjustable
Control system: PLC control system, wrapping layers and times adjustable
Automatic height detection of the goods
Auto film feeding: pneumatic driving, auto film feeding, auto film cutting
Overall dimension: 3000mm*2000mm*(2650-3650)mm
Power supply: AC 380V/ 50HZ
The system design is verified and calculated by various methods to ensure the reliability of the system configuration selection;
