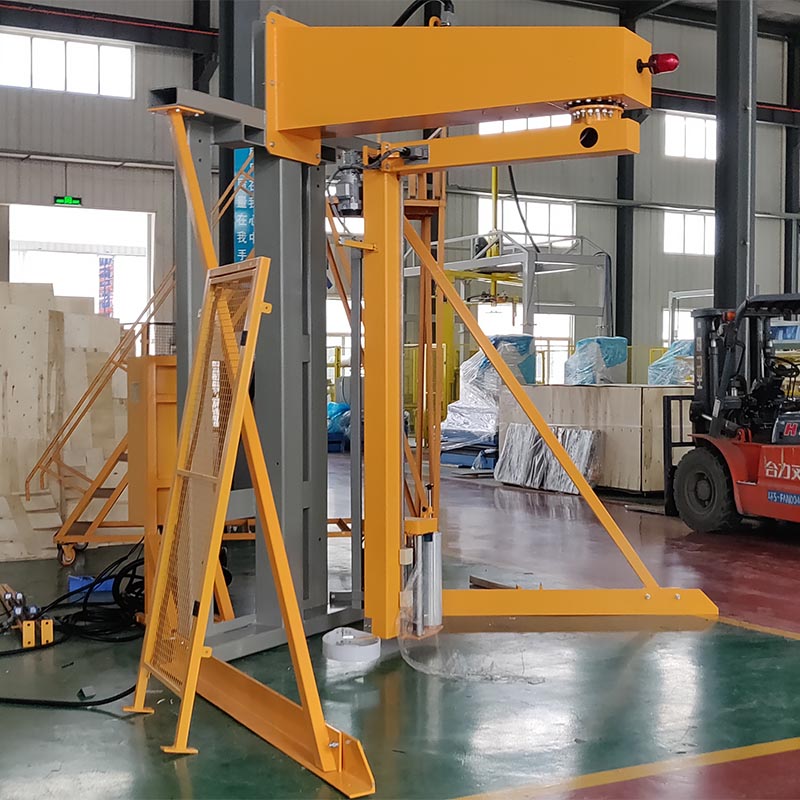

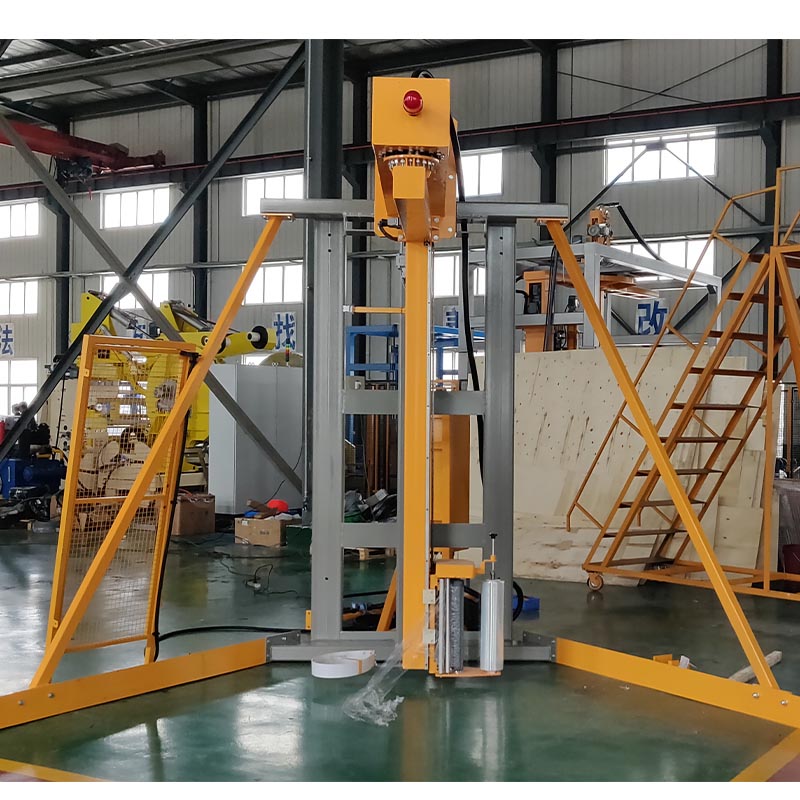

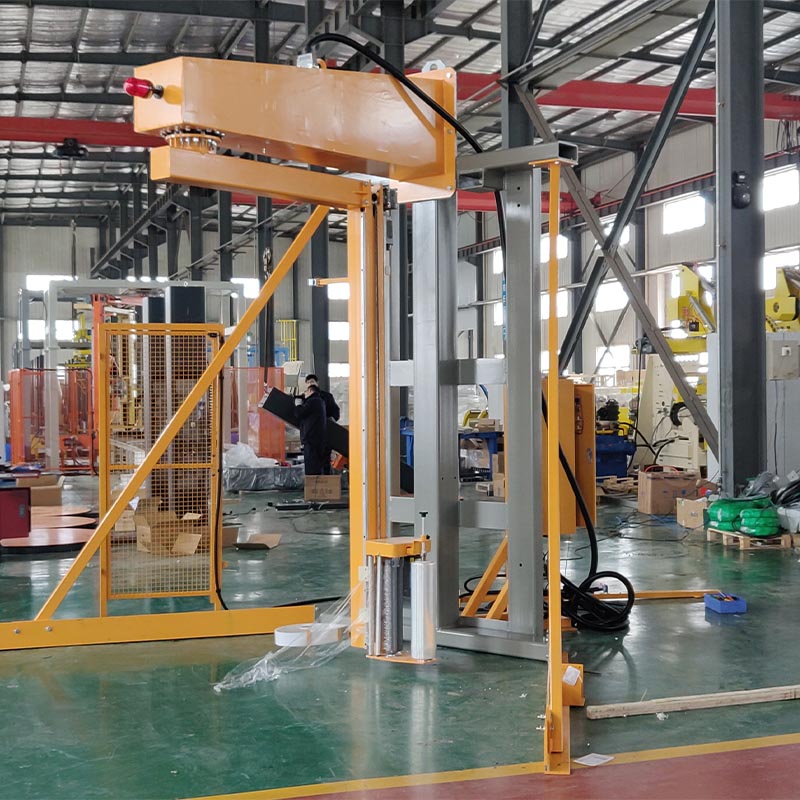

Semi-automatic rotary arm stretch wrapper
OMRON PLC programming system, stable working;
Auto height detection by photo-eye sensor;
Top/bottom & up-down wrap counts setting available from 0-9;
Reinforce wrap allow more wrap counters on same location;
Film tension control adjustment on the panel;
0-15RPM variable arm speed by frequency inverter;
Separate variable carriage up/down speed;
Cycle pause capacity;
Flash light for machine in operation;
Rotary arm stop by safety sensor and reflective photo-eye
Item | Specification |
Max. load size (LxWxH) | (500-1300)mm×(500-1200)mm×(1800-2400)mm. |
Packing efficiency | 20-40 loads / hour |
Rotary arm speed | 0-15 rpm Frequency control |
Power supply | AC 220V |
Max load capacity | Floor capacity |
Working ambience | Indoor, normal temperature |
Machine dimensions | Subject to final design |

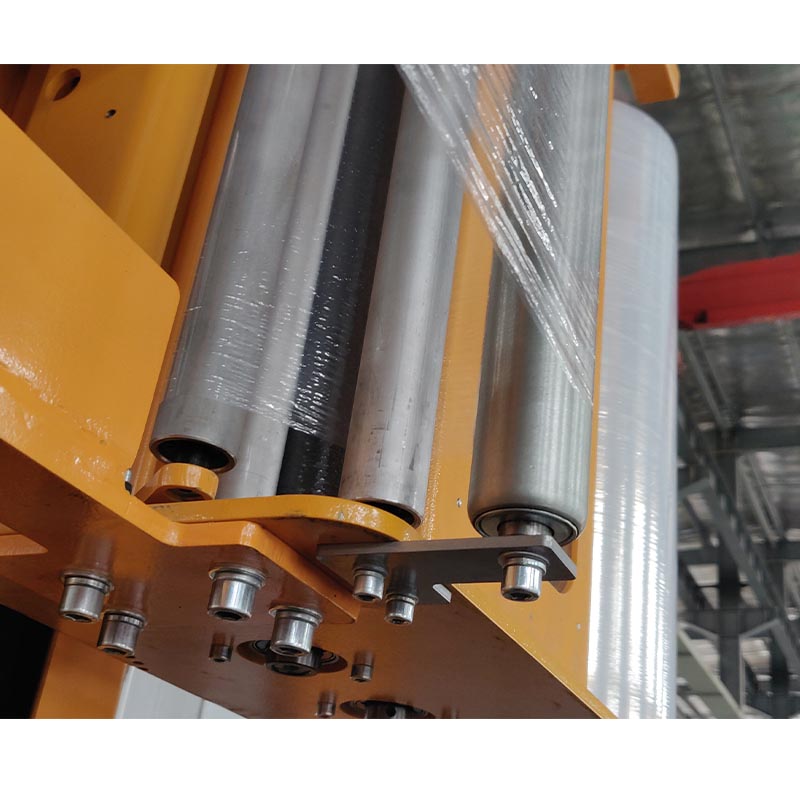

Powered pre-stretch system motor driven, stretching ratio up to 250%, film saving and tighten
Carriage door opens for effortless film replacement;
Adjustable film feeding speed by separate AC drive motor
Heavy duty double-chain carriage lift, safe and steady.
Arm (mast) drive:
Slewing bearing drive system;
Soft start/soft stop
When wrapping process finished as set, the arm auto back to home position.
Operation panel:
Button panel is simple and easy operation.
