Paper Roll Wrapper with Kraft

This is a kraft paper packing system for paper rolls, mainly includes the kraft paper wrapper, together with necessary paper side folding machine, heating system to finish the paper rolls wrapping and sealing.

Contact Now E-Mail Telephone WhatsApp
Product Details

Gram weight:100g/m2
Moisture:7%
Mechanical performance:Suitable for non-tear rolled edge
Wrapping crimping distance:100mm
Folding side width:100mm every side

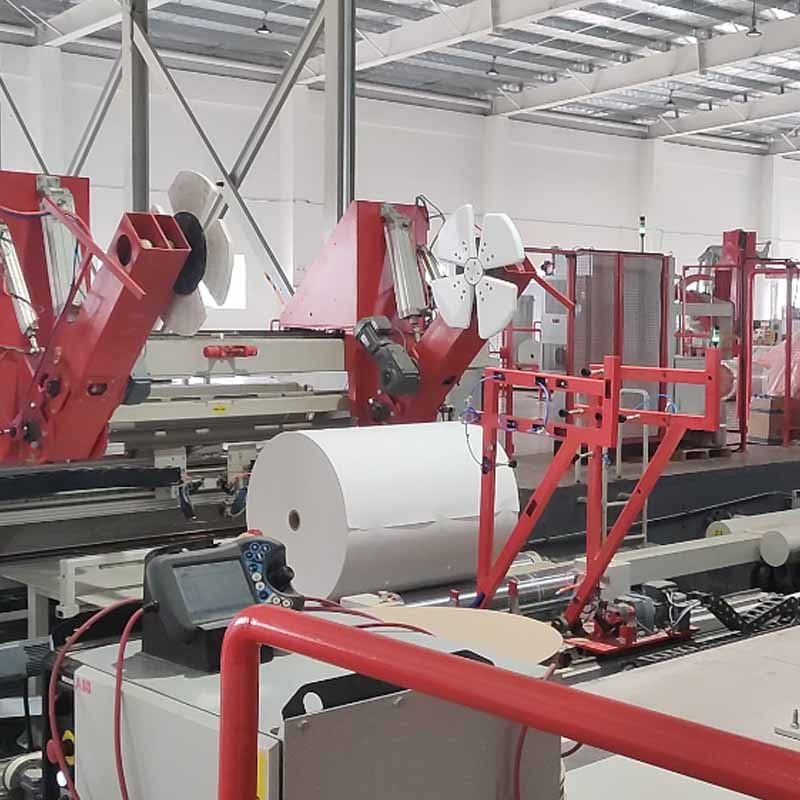

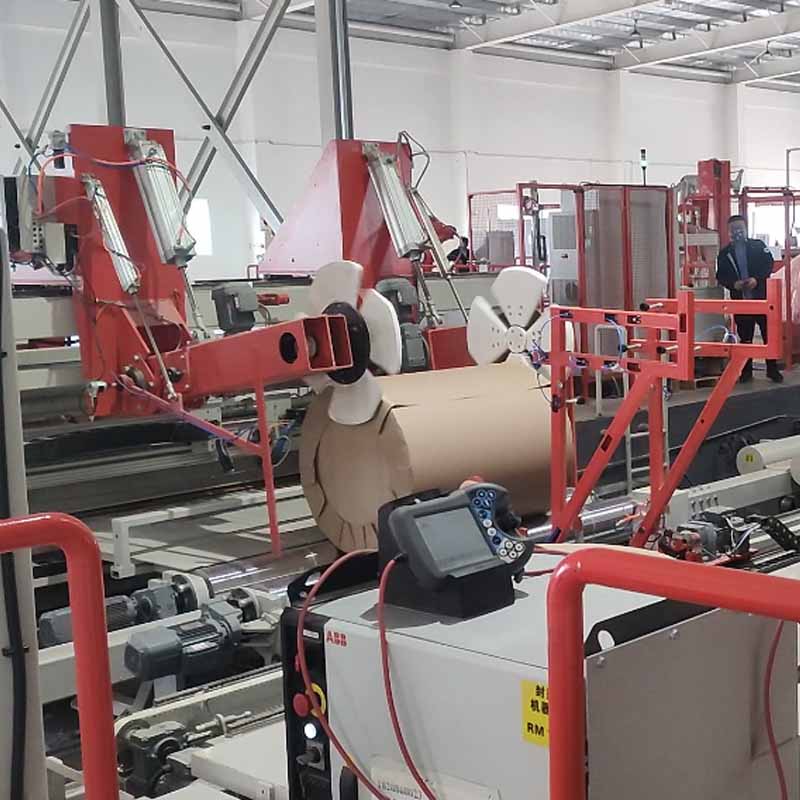

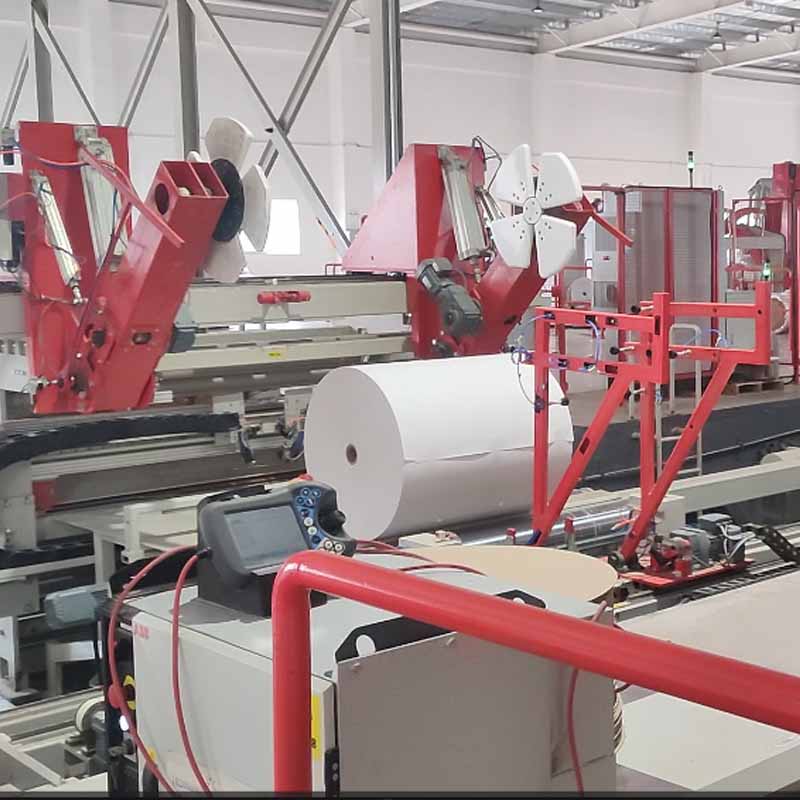

Paper Reel Wrapping Machine for Kraft

  • Main material of the frame: Q235-A

  • The surface of the 7 paper guide rollers is galvanized with a diameter of Ф100mm.

  • 4 sets of tension controller, using motor frequency control.

  • 4 sets of paper holder pneumatic clamping mechanism, including 8 cylinders.

  • 4 pneumatic control boxes and pneumatic control components used.

  • Compressed air lines, fittings and accessories used inside the packaging machine.

  • The gas point is connected to the gas point by the buyer according to the gas requirement and equipped with a shut-off valve.

  • The shaft head adopts the air expansion shaft mode and the 3/6 integrated chuck.

Paper Reel Wrapping Machine for Kraft
