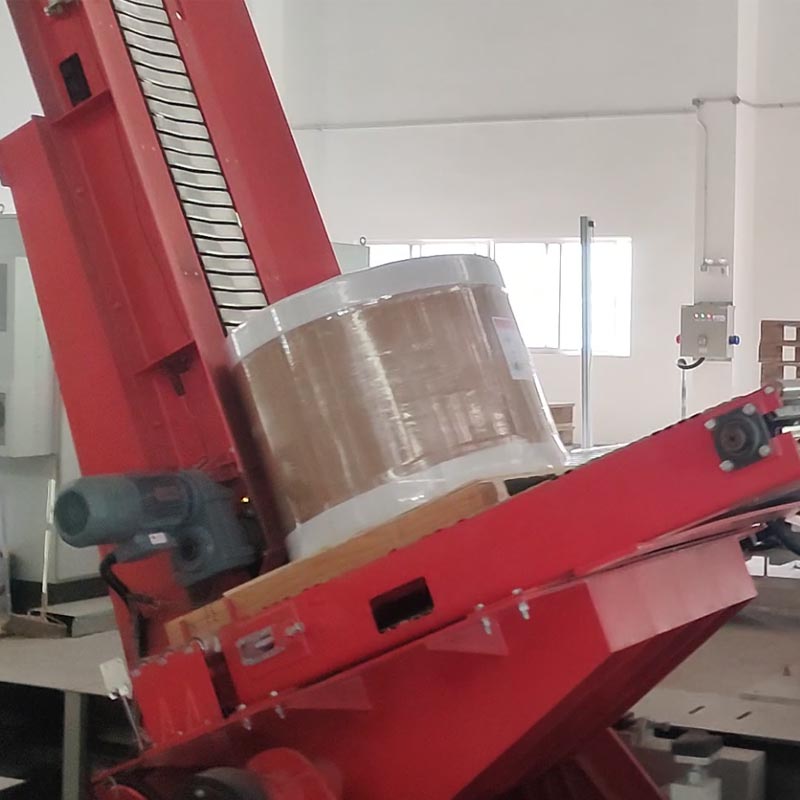

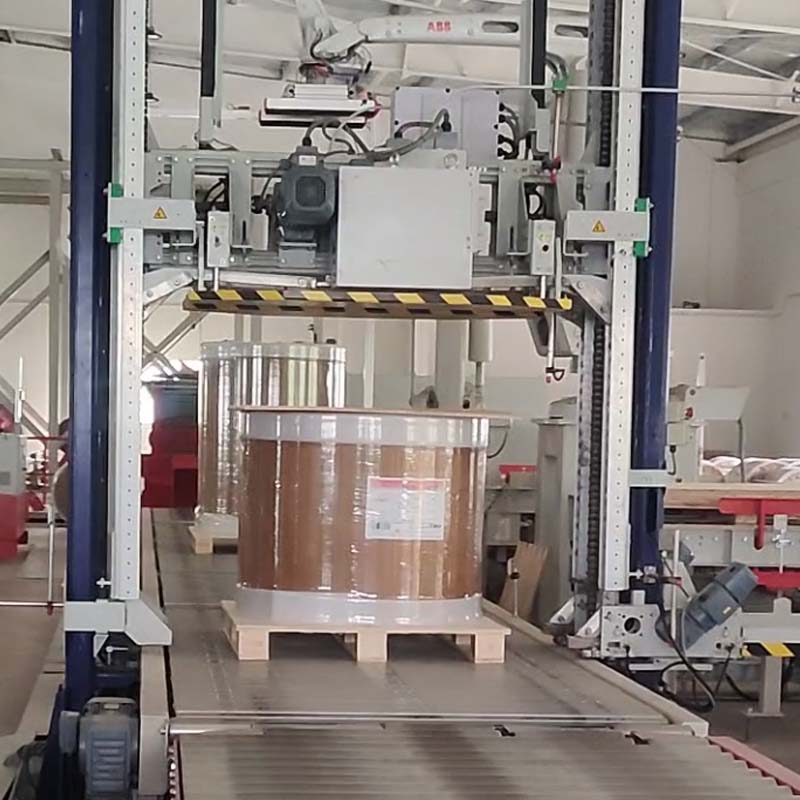

Paper Roll Upender Elevator System
The stop sorting deck is composed by the 12 unit. Working width is 4800mm, unit width is B=400mm, the lifting of unit is realized by the pneumatic tyre..
Product Details
No. | Item | Brand | Origin |
1 | PLC & touch screen | Siemens | Germany |
2 | Inverter | Schneider | France |
3 | Proximity switch | Omron | Japan |
4 | Limit switch | Omron | Japan |
5 | Power switch | Schneider | France |
6 | Relay | Omron | Japan |
7 | Photoeye | Panasonic | Japan |
8 | Pneumatic parts | Airtec Rodless cylinder: SMC | Taiwan, China Japan |
9 | Motor | Chinese brand | China |
Pallet dimension: L1200mm * W1200mm * H1800mm
Volt: 380Volts, 50Hz, 3 phase
Top sheet length: adjustable according to the pallet (normally 1200mm+2*300mm)
Sheet delivery speed: 9.5m/min
Film feeding frame moving speed: 4.5m/min
