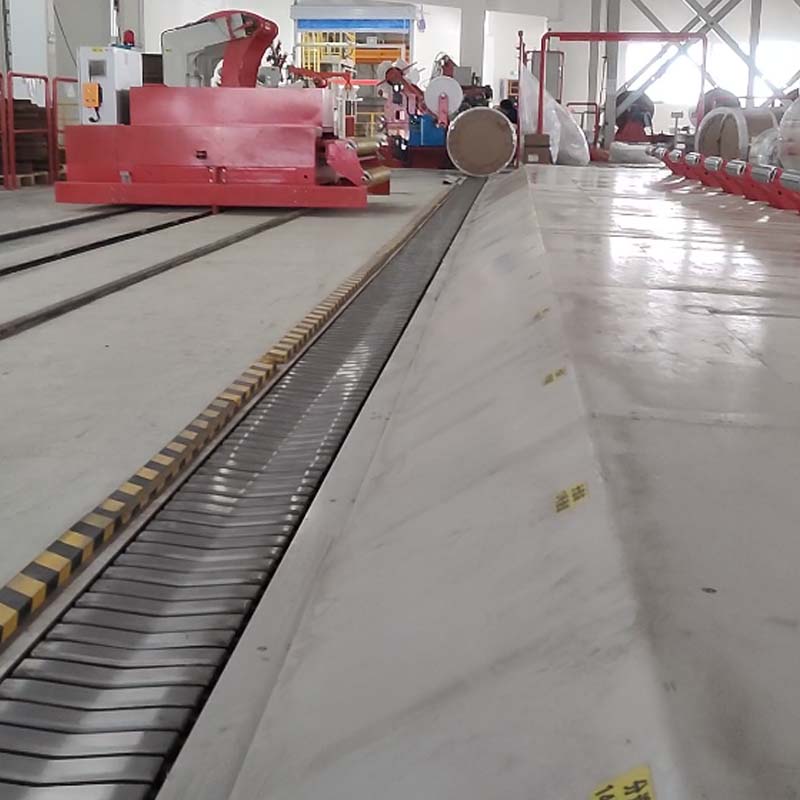

Paper Roll Reel Packing Line
A roll of paper from a rewinder Rolling along the slope,Part of the paper coil stops on the slope via stop distributor 1, Part of the paper roll is directly rolled through the stop distributor through the fixed paper splitter 2, After the first batch of rolls has been sent out of the stop area one by one, manually place the second batch of rolls.
| Rotating speed of the rotary arm: | 0-35rpm, variable frequency control motor driving |
| Function of rotary arm: | automatic brake system, automatic reset |
| Film carriage: | pre-stretch film carriage the stretch ratio up to 250% automatic stretch film feeding |
| Film lifting guide rail: | double chain structure, the lifting speed adjustable |
| Control system: | PLC control system, wrapping layers and times adjustable Automatic height detection of the goods |
| Auto film feeding: | pneumatic driving, auto film feeding, auto film cutting |
| Power supply: | AC 380V/ 50HZ |
When the paper roll is close to the weighing chain plate conveyor 4, the weighing chain plate conveyor 4 will operate automatically, Transfer the paper roll to the weighing device 5 stop, Manually measure the diameter and width of the paper roll and calibrate the accuracy with the production plan. Working of weighing system, Automatic control system ipc no.16 automatically reads the information of the paper roll, The paper roll weight data is displayed automatically and sent to the industrial computer database system for recording,
